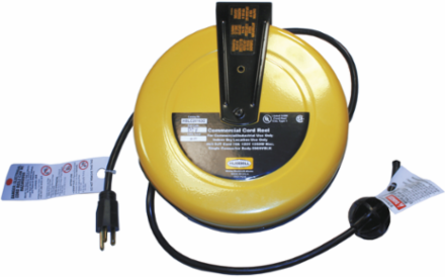

Hubbell Wiring Device-Kellems HBLC25163 Commercial Cord Reel 25 Ft with Wire Leads, Yellow, Steel Construction
- MPN: HBLC25163
- UPC: 783585190020
- PPN: HBL-HBLC25163
- UNSPSC: 26121635
CAD
$617.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cord and Cable Reels, Commercial Cord Reel, 25' With Wire Leads, Yellow
Features
- Compact size, flexible mounting options for ceiling, wall or bench
- Durable steel construction for commercial and general applications
- Automatic ratchet lock holds cord at desired length
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Current / Amperage Rating | 10 A |
| Industry Standard(s) | UL Listed |
| Application | Bench, Ceiling and Wall Mounted |
| Cable Active Length | 25 Ft |
| Cable Type | #16/3 SJT |
| Feeder Cord | 16/3 SJT |
| Reel Frame | Steel |
| Type | Standard Reel With Leads |
| Voltage Rating Description | 125 VAC |
| General Literature Asset 1 Display Text | Safety Product Guide |
| General Literature Asset 3 Display Text | Cord Reels |
| Base Type | Optional |
| Nema Color | Yellow and Black |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A510 |
| Cable Length Inactive | 24 |
| Reel Frame Dimension | Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| NAICS Code | 335931A107 |
| Cable Length | 25 Ft |
|---|---|
| Width | 10.900 in |
| Performance | Environment - Operations - Dry, indoor, non-hazardous locations |
| Base | Optional |
| Cable Inactive Length | 24 |
| Duty | Heavy Duty |
| NEMA Color | Yellow and Black |
| Standard | UL Listed |
| Voltage Rating | 125 VAC |
| Engineering Drawing 1 Display Text | HBLC25163 AutoCAD Drawing |
| General Literature Asset 2 Display Text | Safety Product Guide |
| Amperage Rating | 10 A |
| Cable Specification | 16/3 SJT |
| Style | Leaded |
| Description - Invoice | CORD REEL, 25' W/WIRE LEADS |
| Harmonization Code | 8544429090 |
| MSDS Flag | No |
| Cable Length Active | 300 |
| Construction | Steel |
| Series | Commercial |
| BOX SIZE | 5.100x13.000x10.900 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585190020 |
| Case Weight | 8.000 lb. |
| Lowest Level UOM | Each |
