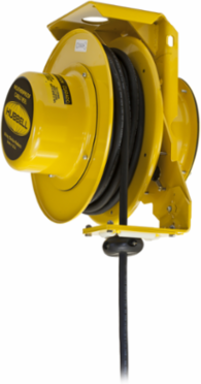

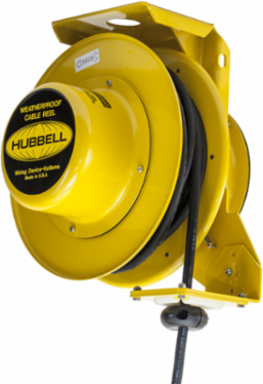

Hubbell Wiring Device-Kellems HBL501042W Weatherproof Cord Reel, 50 Ft, 10/4 SO Cord, Heavy Duty, Yellow
- MPN: HBL501042W
- UPC: 783585209302
- PPN: HBL-HBL501042W
- UNSPSC: 26121635
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cord and Cable Reels, Weatherproof Cord Reel, 50', 10/4 SO Cord, Yellow
Features
- Ratchet lock can be disengaged in field
- Optional pivot base allows 340° rotation of reel
- Multi-position roller guide can be mounted in four different positions
- Ratchet Lock and be Enabled/Disabled
Documentation & Downloads
Specifications
Key Specifications
| General Literature Asset 2 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | UL 355 and CSA, C22.2 No. 21 |
| Application | Bench, Ceiling and Wall Mounted |
| Cable Active Length | 50 Ft |
| Cable Type | #10/4 SOW-A |
| Feeder Cord | 10/4 SOW-A |
| Reel Frame | Steel |
| Standard | UL 355 and CSA, C22.2 No. 21 |
| Voltage Rating | 600 VAC |
| General Literature Asset 1 Display Text | Cord Reels |
| Base Type | Optional |
| Nema Color | Yellow and Black |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A510 |
| Cable Length Inactive | 60 |
| Reel Frame Dimension | Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 104.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585209301 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 3 Display Text | PULP & PAPER SOLUTIONS |
|---|---|
| Cable Length | 50 Ft |
| Width | 20.000 in |
| Performance | Environment - Enclosure Type - Type 4X enclosure, CAN/CSA - C22.2 No. 21;Environment - Operation - Dry, indoor and wet and damp outdoor non-hazardous location |
| Base | Optional |
| Cable Inactive Length | 60 |
| Duty | Heavy Duty |
| NEMA Color | Yellow and Black |
| Special Features | Ratchet Lock and be Enabled/Disabled |
| Type | Weatherproof Reel |
| Voltage Rating Description | 600 VAC |
| Amperage Rating | 20 A |
| Cable Specification | 10/4 SOW-A |
| Style | 16" Reel |
| Description - Invoice | W/PROOF ELEC REEL, 50', 10/4 SO CORD |
| Harmonization Code | 8544499999 |
| MSDS Flag | No |
| Cable Length Active | 600 |
| Construction | Steel |
| Series | Heavy Duty Industrial |
| BOX SIZE | 21.750x21.500x20.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585209302 |
| Case Weight | 104.000 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 46.800 in |
| Pallet Weight | 824.000 lb. |
| NAICS Code | 335931A107 |
