Thomas & Betts 2705-TB Cord Connectors-Straight
- MPN: 2705-TB
- UPC: 786210027050
- PPN: T-B-2705-TB
CAD
$88.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

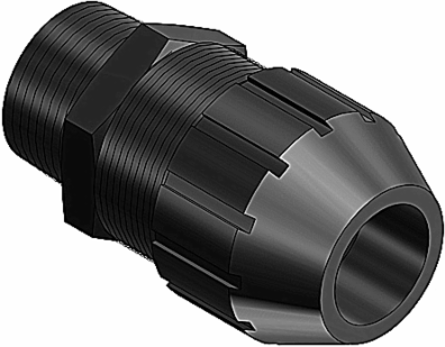

Liquidtight Cord Connector, Straight, Hub Size 1-1/2 Inch, Cord Range 0.910 to 1.150 Inch, Throat Diameter 1.47 Inch, Nylon, Black
Features
- Segmented chuck provides high mechanical pullout performance, will not cut or damage cord jacket.
- Suitable for use in hazardous locations where general purpose equipment is specifically permitted by NEC. Class I, Div 2; Class II, Div 1 & 2; Class III, Div 1 & 2; NEC 501-4(b), 502-4(a)(b), 503-3(a)(b)
- Meets Coast Guard CG293
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121431 Cable gland connector |
|---|---|
| Brand Name | T&B |
| Special Features | Hand Tightens, No Tools Needed for Assembly |
| Standard | UL E13938, CSA, RoHS |
| Conductor Range | 0.910 to 1.150 Inch |
| Color | Black |
| IGCC | 4601 Cable gland connector |
|---|---|
| Type | Cord Connectors-Straight |
| Application | To Connect Flexible Cord to a Box or Enclosure and Provide Adequate Strain Relief. |
| Size | 1-1/2 Inch |
| Material | Nylon |
| Temperature Rating | -34 to +105 Degrees C |
Packaging
| Inner Quantity | 2 |
|---|---|
| Outer Quantity | 10 |
| Weight Uom | 50 lbs. per 100 |
| Inner Dimensions (inches) | 6.3x5.2x4.2 |
|---|---|
| Outer Dimensions (inches) | 12.8x10.7x6 |
European Specifications (ETIM)
| ETIM | EC000441 Cable screw gland |
|---|---|
| Nominal thread size inch/gas pipe thread | 1 1/2 inch |
| Suitable for cable diameter | 23.114-29.21mm |
| Material quality | Polyamide (PA) |
| Model | Straight |
| Thread type | NPT |
|---|---|
| Thread length | 20.64mm |
| Material | Plastic |
| Colour | Black |
| Operating temperature | -34-+105°C |
