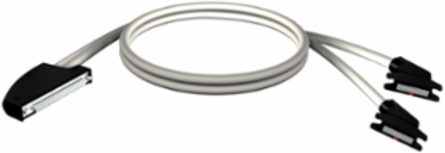

Schneider Electric BMXFCC053 Modicon X80 Preformed Cordset, 40 Way, 0.5 Meter Length

MPN: BMXFCC053
PPN: SCH-BMXFCC053

$182.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 0.5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector and two HE10 connectors for electrical connection. It weighs 0.21kg. It is suitable for medium to large process applications. This cordset is compatible with Telefast Advantys ABE7 sub-bases and I/O module with 40-way connectors. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Tunisia, United States

Physical Attributes

Cable Length	0.5 m

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Scope	Out
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Number Of Cables	2
Range Of Product	Modicon X80
Sustainable Packaging	No
Wire Section	0.324 mm²
Accessory / Separate Part Destination	for I/O module with 40-way connectors
Accessory / Separate Part Designation	preformed cordset for Telefast Advantys ABE7 sub-bases
Package Weight(Lbs)	212.000 g
Warranty (In Months)	18

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Local Publishable Date	2026-07-21
Stocking Flag	Y
Device Type	PLC System - PLC Component
Traceability	No
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1851
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Electrical Connection	1 connector 40 ways2 connectors HE10
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Total Number Of Wires	40
Pep Code	ENVPEP1312019EN
Accessory / Separate Part Type	preformed cordset
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8544422000

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Environmental Disclosure	ENVPEP1312019EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1312019EN

Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
