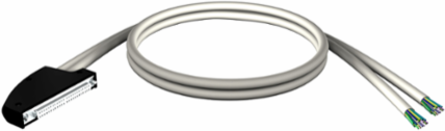

Modicon M340 Cord Set, 40-Way Terminal, 3 m Length, AWG 22
Schneider Electric

Schneider Electric BMXFCW303 Modicon M340 Cord Set, 40-Way Terminal, 3 m Length, AWG 22

  • MPN: BMXFCW303
  • PPN: SCH-BMXFCW303
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $182.38

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This preassembled cordset is part of the Modicon X80 modules. It is compatible with 32 channels modules. It enables the connection between the I/O of modules with 40-way connectors and the sensors, preactuators.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Costa Rica, France, Japan, Tunisia, United States

    Physical Attributes

    Cable Length
    3 m

    Important Information Attributes

    Persona Type Ids
    EU, OM8, SI
    Electrical Connection
    1 connector 40 ways, 2 ends with color-coded flying leads DIN 47100
    Local Publishable Date
    2026-03-25
    Stocking Flag
    N
    Device Type
    PLC System - PLC Component
    Traceability
    No
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1851
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Awg Gauge
    AWG 22
    Product Availability
    Stock - Normally stocked in distribution facility
    Returnability
    Yes
    Total Number Of Wires
    40
    Pep Code
    ENVPEP1312019EN
    Accessory / Separate Part Type
    preformed cordset
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Weee ScopeOut
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Number Of Cables2
    Range Of ProductModicon X80
    Sustainable PackagingNo
    Wire Section0.324 mm²
    Accessory / Separate Part Destinationfor I/O module with 40-way connectors
    Accessory / Separate Part Designationpreformed cordset with one end with flying leads
    Package Weight(Lbs)888.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Environmental Disclosure
    ENVPEP1312019EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Free Of Svhc
    Yes
    Pep Code
    ENVPEP1312019EN
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold

    General Attributes

    Range Of Product
    Modicon X80

    ETIM

    ETIM 8
    EC000237
    ETIM 9EC000237

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
