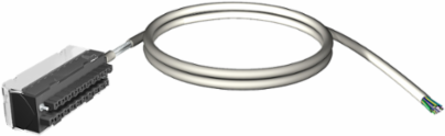

Schneider Electric BMXFTW305 Modicon X80 Cord Set, 3m Length, 40-Way Terminal, AWG 22

MPN: BMXFTW305
PPN: SCH-BMXFTW305
UNSPSC: 32151703

$327.11

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Schneider Electric BMXFTW305 Modicon X80 Cord Set is designed for seamless connectivity in industrial applications. With a generous length of 3 meters, this cord set features a robust configuration with a 40-way terminal, facilitating efficient and reliable connections for your electrical systems. Constructed with AWG 22 wire, it offers optimal conductivity while ensuring durability, making it an essential component for enhancing the functionality and performance of your Modicon X80 setups. Whether for expansion projects or system upgrades, this cord set is an invaluable asset for engineers and technicians demanding high-quality electrical solutions.

Features

Reliability and robustness
3 meters
20-way terminal

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China

Weight	940 g

Physical Attributes

Cable Length	3 m

Complementary Attributes

Us Rated Supply Voltage	300 Vrms

Important Information Attributes

Persona Type Ids	EU, OM8, SI
Carbon Footprint Of The Distribution Phase A4	1.8111445289175099, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0006545187319286707, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	38 kg CO2 eq., 37.996224951393
Local Publishable Date	2026-07-27
Device Type	PLC System - PLC Component
Traceability	No
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2411005EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1851
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Awg Gauge	22 AWG
Number Of Cables	1
Range Of Product	Modicon X80
Software Version	v6.2.2
Total Lifecycle Carbon Footprint	47 kg CO2 eq.
Wire Section	0.324 mm²
Data Source	extrapolated product
Accessory / Separate Part Type	preformed cordset
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Persona Type Names	End User, OEM - Control Panelbuilder, System Integrator
Carbon Footprint Of The End Of Life Phase C1 To C4	3 kg CO2 eq., 2.558690999965125
Carbon Footprint Of The Manufacturing Phase A1 To A3	5 kg CO2 eq., 5.04110778868198
Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Scope	Out
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Electrical Connection	1 end with color-coded flying leads DIN 471001 removable terminal block 40 ways
Product Availability	Stock - Normally stocked in distribution facility
Returnability	Yes
Sustainable Packaging	No
Total Number Of Wires	40
Database Version	2023-02
Accessory / Separate Part Destination	for I/O module with removable terminal block
Accessory / Separate Part Designation	preformed cordset with one end with flying leads
Customs Code	8544422000
Functional Unit Description	To conduct the current passively during 20 years at 100% use rate.
Functional Unit Unit	Unit

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2411005EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-11-30
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Reach Free Shvc	Yes
China Rohs Regulation	X
Carbon Footprint	47.40782278768955
Environmental Disclosure	ENVPEP2411005_V1-EN
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2411005_V1-EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review
