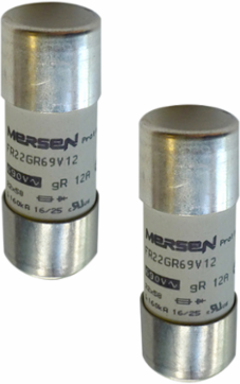

Mersen E1018559 Protistor 22x58 gR Fuse 80 A 690 VAC, Ceramic, Clip Mounting
- MPN: E1018559
- PPN: FER-E1018559
CAD
$192.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These Protistor® size 22x58 have been designed to protect power semiconductors, complying with standard IEC 60269-1 and -4. They are extremely high interrupting rating fuses: 690 VAC, with large band of ratings (current rating 15 to 135 A). Two models are existing: with or without trip-indicator
Specifications
Key Specifications
| Rated voltage AC IEC | 690 V |
|---|---|
| ROHS Compliant | Yes |
| Speed/Characteristic | gR |
| Mounting | Clip |
| Melting I2t | 1240 A²s |
| Connection/Terminal Material | Silver-Plated Copper |
| Body/Insulating Material | Ceramic |
| Length | 2.28 in |
| Ampere Rating | 80 A |
|---|---|
| AC or DC | AC |
| Fuse Size | 22x58 |
| Clearing I2t At Rated Voltage | 7600 A²s |
| AC Max I.R./Breaking Capacity: I1 | 160 kA |
| Connection/Terminal Type | Ferrule |
| Power Dissipation at Rated Current Value | 13.8 W |
| Weight | 0.132 lb |
