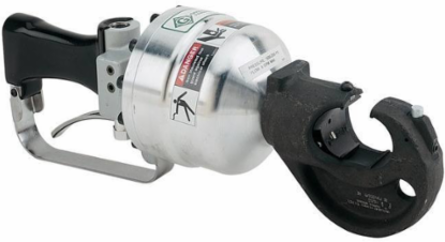

Greenlee LPK1230 Hydraulic Crimping Tool 12 Ton with 1.200 Inch Jaw Opening
- MPN: LPK1230
- UPC: 783310493402
- PPN: GRN-LPK1230
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Hydraulic Crimping Tool 12 Ton with 1.200 Inch Jaw Opening
Features
- No high pressure intensifier required
- 1.20 IN (30 mm) jaw opening
- Relief valve signals operator when crimp is complete
- Compatible with dies for: Burndy Y35, Alcoa 12A, 12AC, 12HA, 12HAC, Anderson HC-12, HC-12H
- Accepts standard "U" style dies
- Head rotates for easy tool positioning
- Powered in both the advance and retract directions to prevent hang-ups
- Relief valve assures 12-ton (10.9 t) crimp with 1,500 -2,500 PSI (103 - 170 bar) system
Documentation & Downloads
Specifications
Key Specifications
| Accessory | 54923 HTMA Male Coupler, 54925 HTMA Female Coupler, 35887 Crimping Tool Load Cell 12 Ton |
|---|---|
| Flow Rate | 3 - 9 GPM (11 - 34 LPM) |
| Jaw Opening | 1.200 IN (30.000 MM) |
| Operating Pressure | 1500 - 2500 PSI (103 - 172 BAR) |
| Return Port | 3/4 - 16 SAE O-Ring |
| Weight | 18.500 LB (8.440 KG) |
| Crimping Force | 24000.000 LB (106.800 KN) At 1500 PSI |
|---|---|
| Height | 7.000 IN (177.800 MM) |
| Length | 19.300 IN (490.200 MM) |
| Pressure Port | 3/4 - 16 SAE O-Ring |
| System | Open and Closed Center Hydraulic System |
