nVent Caddy CRLJ37EG nVent CADDY Rod Lock Bar Joist Hanger, 3/8" Rod
- MPN: CRLJ37EG
- UPC: 782856864288
- PPN: CAD-CRLJ37EG
- UNSPSC: 31161708
CAD
$21.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

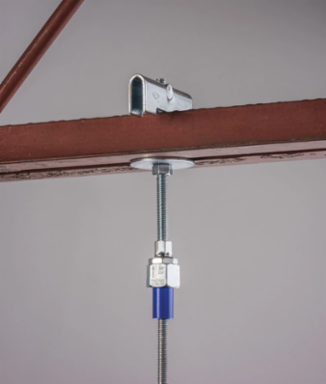

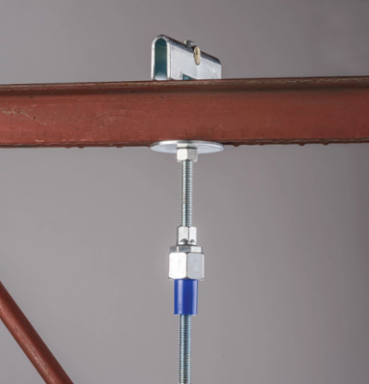

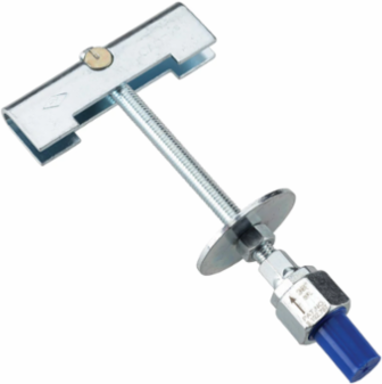

nVent CADDY Rod Lock Bar Joist Hanger, 3/8" Rod
Features
- Easily installs from underneath the bar joist
- Easily installs on lower or upper truss chord of the bar joist
- Plastic protection cap prevents dirt or structural coatings from obstructing the “push-to-install" mechanism
- Prefabricated assemblies easily lift and lock into place, helping to save time and money
- Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
- Works with slightly damaged threads and minor burrs on the threaded rod
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Finish | Electrogalvanized |
| Rod Size (RS) | 0.375 |
| Width (W) | 94 |
| Wrench Size 2 | 0.9375 |
| Static Load | 3,500 |
| Material | Steel |
|---|---|
| Static Load Safety Factor | 3.5:1 |
| Height (H) | 188 |
| Wrench Size 1 | 0.5625 |
| Static Load (F) | 1,000 |
| Sub Brand | CADDY |
