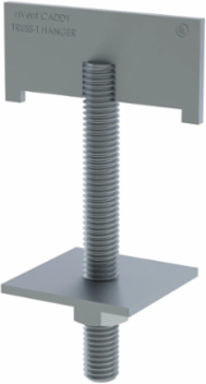

nVent Caddy CTH037BC Truss-T Bar Joist Hanger, 3/8 Inch Rod, 1200 lb Load Capacity, Steel

Description

Features

• Easily installs on the bottom chord of engineered open web bar joists from underneath, limiting overhead work
• Innovative attachment effortlessly slides through the middle slot of open web bar joists and quickly locks into place when put under load
• Installation of the complete, self-contained system can be accomplished with one hand and requires no additional special tools
• The unique design of the nVent CADDY Truss-T hanger does not need to be tightened like a traditional beam clamp, providing greater adjustability and speed during system alignment

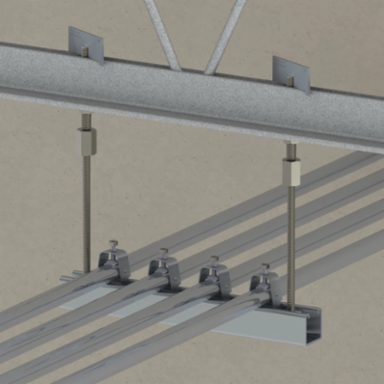

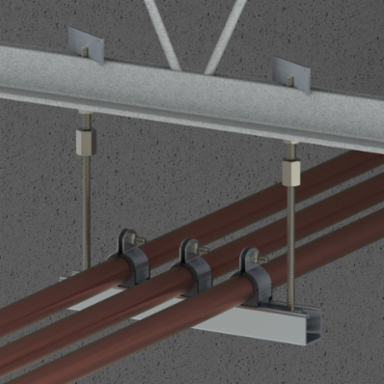

• Prefabricated single pipe hanger and multi-pipe/tube trapeze assemblies can be prefabricated on the ground or in the shop, and easily hung by the installer
• Concentrically loading the bar joist chord eliminates torsion and/or distortion, adhering to the strict rules established by the Steel Joist Institute (SJI)
• The increased load carrying capacity results in the product being UL listed to support a maximum of 8" Schedule 40 pipe
• Included square washer with integrated threaded nut eliminates the need for loose hardware
