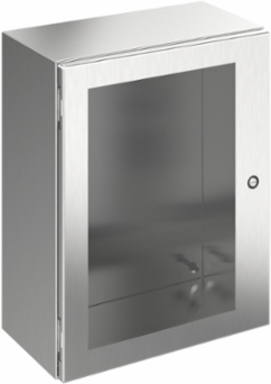

nVent Hoffman CSD24248WSS Concept Window Door 1/4 Turn Latch 24x24x8 Inch Stainless Steel Brushed

MPN: CSD24248WSS
UPC: 783510117801
PPN: HOF-CSD24248WSS
UNSPSC: 39121324

$4026.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Concept stainless steel enclosure for indoor/outdoor use includes window door for internal viewing. This Concept Window Door 1/4 Turn Latch Type 4X, CSD24248WSS item measures 24X24X8 inch with a material of Stainless 304, finish Brushed.

Features

Window pre-mounted in door of enclosure.
Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
Quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Bonding provision on door; grounding stud on body
Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wallmounting hole
Installation instructions
Clear polycarbonate window

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	610
Protection Rating	NEMA Type 12
Finish	Brushed #4
Door Thickness	1.98
Mounting (G x H)	572 x 572
IP Rating	IP66
Latch Type	Quarter-Turn
Material	Stainless Steel
NEMA Rating	4X Watertight, corrosion-resistant

Height (H)	610
Depth (D)	203
Product Family	Concept
Body Thickness	1.59
Window Size (M x N)	20.74 x 17.68
Latch Quantity	2
Weight	39.36
Sub Brand	Concept
Size	24.00x24.00x8.00 in
