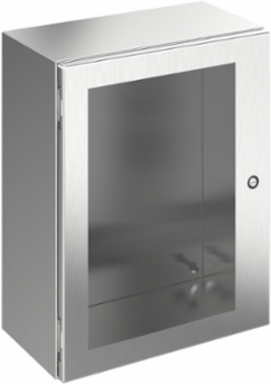

nVent Hoffman CSD201610WSS Concept Window Door 1/4 Turn Latch, 20x16x10 Inch, Stainless Steel 304
nVent Hoffman CSD201610WSS Concept Window Door 1/4 Turn Latch, 20x16x10 Inch, Stainless Steel 304
- MPN: CSD201610WSS
- UPC: 783510128821
- PPN: HOF-CSD201610WSS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3299.69/ EA
Description
Concept stainless steel enclosure for indoor/outdoor use includes window door for internal viewing. This Concept Window Door 1/4 Turn Latch Type 4X, CSD201610WSS item measures 20x16x10 inch with a material of Stainless 304, finish Brushed.
Features
- Window pre-mounted in door of enclosure.
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wallmounting hole
- Installation instructions
- Clear polycarbonate window
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 406
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Door Thickness
- 1.59
- Mounting (G x H)
- 470 x 368
- IP Rating
- IP66
- Latch Type
- Quarter-Turn
- Material
- Stainless Steel
- NEMA Rating
- 4X Watertight, corrosion-resistant
Height (H)508
Depth (D)254
Product FamilyConcept
Body Thickness1.59
Window Size (M x N)16.74 x 11.10
Latch Quantity1
Weight28
Sub BrandConcept
Size20.00x16.00x10.00 in
