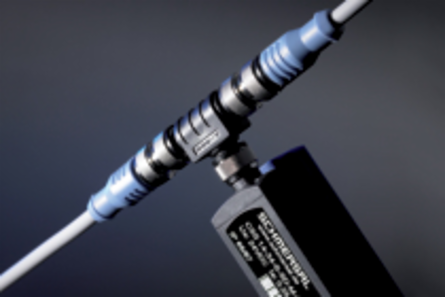

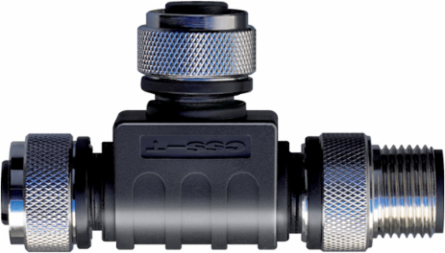

Schmersal 101190026 CSS-T T-Adapter, M12 Thread, 56 mm Length, 30 VDC, 40 g Weight
- MPN: 101190026
- PPN: SCM-101190026
CAD
$165.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CSS-T T-Adapter, M12 Thread, 56 mm Length, 30 VDC, 40 g Weight
Documentation & Downloads
Specifications
Key Specifications
| Length | 56 mm |
|---|---|
| Height | 15 mm |
| Width | 23.5 mm |
|---|
Electrical data
| Rated operating voltage | 30 VDC |
|---|
| Operating current | 2,000 mA |
|---|
Note
| Note (General) | With the CSS-T T-adapter, CSS 34 sensors can be daisy-chained. |
|---|

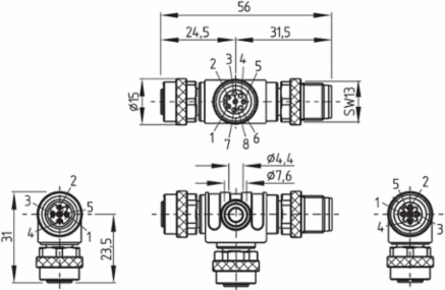

Mechanical data - Dimensions
| Width | 23.5 mm |
|---|---|
| Diameter of the ISO-thread | M12 |
| Height | 15 mm |
|---|
General data
| Versions | T-adapter |
|---|---|
| Gross weight | 40 g |

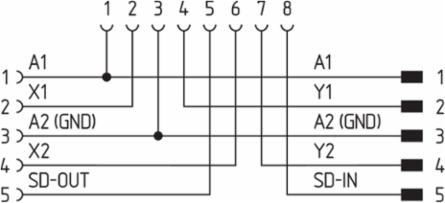

| Connector (electric) | 1 x Male connector, 5-pole | 2 x Female connector, 5- and 8-pole |
|---|
Ambient conditions
| Ambient temperature | -25 ... +70 °C |
|---|
Accessory
| Recommendation (product combination) | Sensors |
|---|
