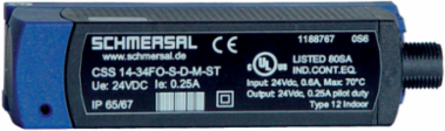

Schmersal 101189088 Electronic Safety Sensor, 27 mm x 108.2 mm, PNP Safety Outputs
Schmersal 101189088 Electronic Safety Sensor, 27 mm x 108.2 mm, PNP Safety Outputs
- MPN: 101189088
- PPN: SCM-101189088
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$572.82/ EA
Features
- 1 x connector plug M12, 8-pole
- without edge monitoring of the enabling pushbutton, suitable for automatic start
- To control positive-guided relay without downstream safety monitoring module
- Suitable as individual or terminal device in series-wiring of standards sensors to replace a safety monitoring module
- Self-monitored series-wiring of up to 30 CSS 34 sensors and one CSS 34F0/F1 sensor for control category 4 to ISO 13849-1
- Thermoplastic enclosure
- Electronic contact-free, coded system
- Misaligned actuation possible
- 27 mm x 108.2 mm x 35 mm
- High repeat accuracy of the switching points
- Max. length of the sensor chain 200 m
- 2 short-circuit proof PNP safety outputs
- Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Specifications
Electrical data
- No-load supply current I
- 100 mA
- Required rated short-circuit current
- 100 A
- Switching frequency, approx.
- 3 Hz
Operating current600 mA
Note (Electrical data, Fuse rating)(Circuit breaker)
Note
- Note (General)
- Evaluation requirements: dual-channel safety input, suitable for p-type sensors with NO function. The safety-monitoring module must tolerate internal functional tests of the sensors with cyclic switch-off of the sensor outputs for max. 0.5 ms. Short-circuit recognition by the evaluation is not necessary.

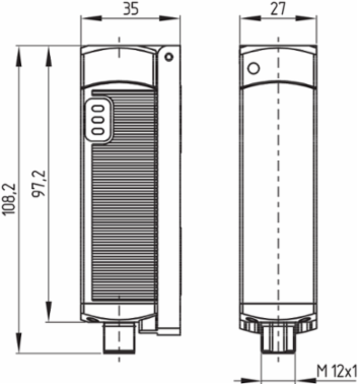

Mechanical data - Dimensions
- Length of sensor
- 35 mm
- Height of sensor
- 108.2 mm
Width of sensor27 mm
Pin assignment
- PIN 1
- 1A1 Ue: (1)
- PIN 3
- A2 GND
- PIN 5
- OUT Diagnostic output OUT
- PIN 7
- Y2 Safety output 2
PIN 2X1 Safety input 1
PIN 4Y1 Safety output 1
PIN 6X2 Safety input 2
PIN 8IN without function
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Diagnostic output
- Yes
- Cross-circuit detection
- Yes
- Cascadable
- Yes
- Integral system diagnostics, status
- Yes
- Number of semi-conductor outputs with signaling function
- 1
- Number of series-wiring of sensors
- 31
Short circuit detectionYes
Safety functionsYes
Input for enabling pushbutton, suitable for automatic startYes
Number of LEDs3
Number of fail-safe digital outputs2
General data
- Standards
- EN IEC 60947-5-3
- Housing construction form
- Block
- Sensor topology
- Sensor for series wiring
- Active area
- Glass-fibre, reinforced thermoplastic
- Reaction time, maximum
- 30 ms
Working principleinductive
Installation conditions (mechanical)not flush
Enclosure materialGlass-fibre, reinforced thermoplastic
Gross weight146 g
Duration of risk, maximum60 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 60947-5-3 | EN IEC 61508
- Category
- 4
- Safety Integrity Level (SIL), suitable for applications in
- 3
Performance Level, up toe
PFH value3.60 x 10⁻⁹ /h
Mission time20 Year(s)
Electrical data - Safety digital outputs
- Rated operating current (safety outputs)
- 250 mA
- Design of control elements
- p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-12
- 0.25 A
- Current, Utilisation category DC-13
- 0.25 A
Output current, (fail-safe output), maximum0.25 A
Voltage drop U0.5 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Ambient conditions
- Degree of protection
- IP65 | IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- II
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connector plug M12, 8-pole
Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current
Electrical data - Diagnostic outputs
- Design of control elements
- p-type
- Voltage, Utilisation category DC-12
- 24 VDC
- Voltage, Utilisation category DC-13
- 24 VDC
Voltage drop U5 V
Current, Utilisation category DC-120.05 A
Current, Utilisation category DC-130.05 A
Mechanical data - Switching distances according EN IEC 60947-5-3
- Nominal switching distance S
- 10 mm | 12 mm | 15 mm
- Assured switching distance "OFF" S
- 15 mm | 16 mm | 18 mm
Assured switching distance "ON" S10 mm | 13 mm | 8 mm
Mechanical data
- Actuating panels
- Actuation from top
- Switching distance actuator
- Actuator CST 180-1 / CST 180-2: 10 mm | Actuator CST 180-1 / CST 180-2: 12 mm | Actuator CST 180-1 / CST 180-2: 16 mm | Actuator CST 34-S-2: 10 mm | Actuator CST 34-S-2: 16 mm | Actuator CST 34-S-2: 8 mm | Actuator CST 34-S-3: 13 mm | Actuator CST 34-S-3: 15 mm | Actuator CST 34-S-3: 18 mm | Actuator CST 34-V-1: 10 mm | Actuator CST 34-V-1: 12 mm | Actuator CST 34-V-1: 15 mm
- Repeat accuracy R
- 0.5 mm
Active areafront side
Hysteresis (Switching distance), maximum1.5 mm
Note (Repeat accuracy R)Axial offset: the front face allows for an axial misalignment (z) of max. ± 8 mm (see figure: operating principle).
Accessory
- Recommendation (actuator)
- CST 34-V-1 | CST 34-S-2 | CST 34-S-3 | CST 180-1 | CST 180-2
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | cULus | UKCA
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 61000-6-2
