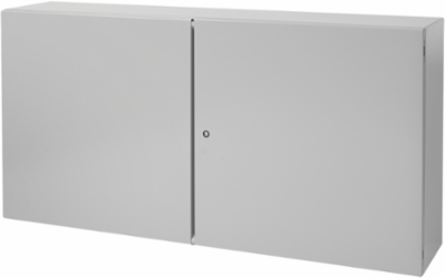

nVent Hoffman CTD304810LG Concept Two-Door Enclosure 30.00x48.00x10.00 Inch Steel, NEMA Type 12
- MPN: CTD304810LG
- UPC: 783510295325
- PPN: HOF-CTD304810LG
- UNSPSC: 39121324
CAD
$1856.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD304810LG item measures 30.00x48.00x10.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 in.
- Four hinges on 60in.-high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Overlapping door design that provides full-width access
- Three-point latch system on right-hand hinged door furnished with flush slotted insert
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 1,219 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Body Thickness | 1.9 |
| Mounting (G x H) | 724 x 1181 |
| Weight | 107 |
| Material | Steel |
| Color | Gray |
| Height (H) | 762 |
|---|---|
| Depth (D) | 254 |
| Product Family | Concept |
| Color Code | RAL 7035 |
| Door Thickness | 1.9 |
| IP Rating | IP55 |
| Sub Brand | Concept |
| Size | 30.00x48.00x10.00 in |
| NEMA Rating | 12 Indoor, dust-resistant |
