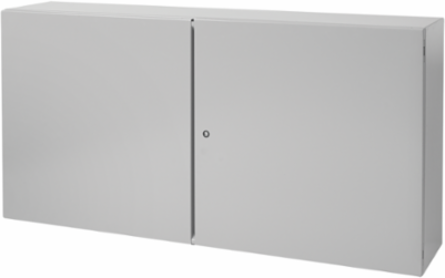

nVent Hoffman CTD306012LG Concept Two-Door Enclosure, 30 Inch x 60 Inch x 12 Inch, Steel, NEMA Type 12
- MPN: CTD306012LG
- UPC: 783510165390
- PPN: HOF-CTD306012LG
- UNSPSC: 39121324
CAD
$2370.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD306012LG item measures 30.00x60.00x12.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 in.
- Four hinges on 60in.-high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Overlapping door design that provides full-width access
- Three-point latch system on right-hand hinged door furnished with flush slotted insert
Documentation & Downloads
Specifications
Additional
- Size
- 30.00 x 60.00 x 12.00 in
- NEMA Rating
- 12 Indoor, dust-resistant
- Material
- Steel
- Body Thickness
- 1.9 mm
- Height (H)
- 762 mm
- Depth (D)
- 305 mm
- Door Opening Angle
- 210 degrees
- Latch Type
- Three-point flush slotted latch system on right-hand hinged door
- Gasket
- Seamless foam-in-place
- Flange
- Minimum-width body flange and external formed body flange
- Mounting Holes
- Mounting holes in back of body for optional external wall-mount brackets and panel mounting studs
- Provision
- Provisions on door for optional high-impact thermoplastic data pocket
- Sub Brand
- Concept
- Color Code
- RAL 7035
Weight136
IP RatingIP55
FinishPowder Coated, RAL 7035 Light Gray
Door Thickness1.9 mm
Width (W)1,524 mm
Door StyleTwo-Door, Overlapping
Gauge14 Door, 14 Body
HingesFour hinges on 60 inch high enclosures, removable with hidden hinges
ConstructionSeams continuously welded and ground smooth; corner-formed doors
Mounting (G x H)724 x 1486 mm
GroundingGrounding stud on body; bonding provision on door
Door AlignmentDoor alignment device on doors wider than 30 in
Product FamilyConcept
ColorLtGray
