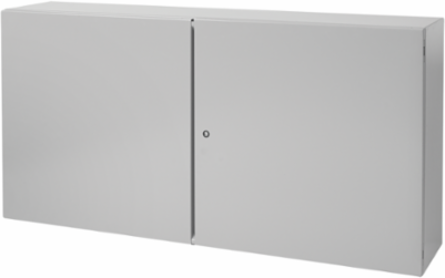

nVent Hoffman CTD30488LG Concept Two-Door Enclosure 30.00x48.00x8.00 Inch Steel, NEMA Type 12
- MPN: CTD30488LG
- UPC: 783510165291
- PPN: HOF-CTD30488LG
- UNSPSC: 39121324
CAD
$1839.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD30488LG item measures 30.00x48.00x8.00 inches with a material of Steel colored Lt Gray.
Features
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 in.
- Four hinges on 60in.-high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Overlapping door design that provides full-width access
- Three-point latch system on right-hand hinged door furnished with flush slotted insert
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,219
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Body Thickness
- 1.9
- NEMA Rating
- 12 Indoor, dust-resistant
- IP Rating
- IP55
- Sub Brand
- Concept
- Size
- 30.00x48.00x8.00 in
Height (H)762
Depth (D)203
Product FamilyConcept
Color CodeRAL 7035
Door Thickness1.9
Mounting (G x H)724 x 1181
Weight103
MaterialSteel
ColorLtGray
