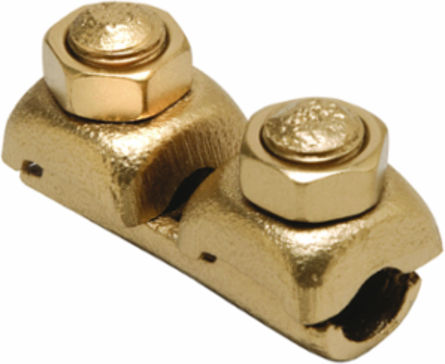

Burndy QR44 Copper Alloy QIKLINK Splice/Reducer 850-1000 kcmil, 2-5/8 Inch Height, 1 Inch Width
- MPN: QR44
- UPC: 781810158654
- PPN: BUR-02003106
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper Alloy QIKLINK Splice/Reducer 850-1000 kcmil, 2-5/8 Inch Height, 1 Inch Width
Specifications
Key Specifications
- Connector Type
- Splice;Reducer
- Material
- Copper Alloy
- Physical Attribute - Screw Type
- Hexagonal Bolt
- Plating Type
- Unplated
- UPC
- 781810158654
- Dimension - B Length inch
- 1.75 in 1.06 in
- Dimension - Height inch
- 2.63 in 1.13 in
- Dimension - Length Overall inch
- 3.88 in
- Dimension - Width inch
- 1.88 in
- Conductor - Copper Solid Size A Range
- 3/0 AWG-4/0 AWG
- Conductor - Copper Solid Size B Range
- 3/0 AWG-4/0 AWG
- Conductor - Copper Str Size A
- 850 kcmil;900 kcmil;1000 kcmil 3/0 AWG;4/0 AWG
- Conductor - Copper Str Size B
- 850 kcmil;900 kcmil;1000 kcmil 3/0 AWG;4/0 AWG
- Certification - CSA Approved
- No
- Certification - cULus
- No
- Standards - RoHS Compliance Status
- CM
Installation Torque Recommended in-lb250 LBS/in
Physical Attribute - Number of Screws2
PlatedN
Trade NameQIKLINK™
Dimension - B Length fraction1-3/4 in 1-1/16 in
Dimension - Height fraction2-5/8 in
Dimension - L Length Overall mm99 mm 60 mm
Dimension - Width fraction1 in
Dimension - Width mm48 mm 25 mm
Conductor - Copper Solid Size B3/0 AWG;4/0 AWG
Conductor - Copper Str Size900;1000
Conductor - Copper Str Size A Range850 kcmil-1000 kcmil 3/0 AWG-4/0 AWG
Conductor - Copper Str Size B Range850 kcmil-1000 kcmil
Certification - UL RecognizedNo
Industry Standard(s)UL468A-468B
UL ListedNo
