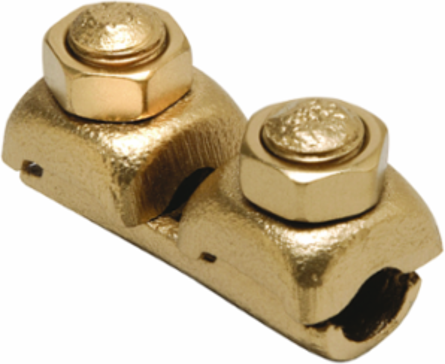

Burndy QR26 QIKLINKTM Mechanical Splice Reducer, 1/0-2/0 AWG, 2-1/8 Inch Length, 13/16 Inch Width
- MPN: QR26
- UPC: 781810334423
- PPN: BUR-366442
CAD
$151.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Splice or Reducer Qiklink, 1/0 Str. - 2/0 Str., 2-1/8 in L, 13/16 in W.
Documentation & Downloads
Specifications

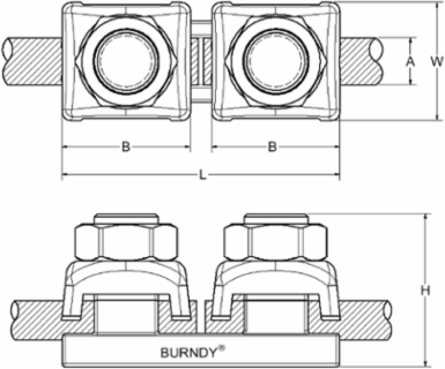

Dimensions
| Dimension - B Length fraction | 15/16 in |
|---|---|
| Dimension - Height fraction | 1-1/4 in |
| Dimension - L Length Overall mm | 54 mm |
| Dimension - Width fraction | 13/16 in |
| Dimension - Width mm | 21 mm |
| Dimension - B Length inch | 0.94 in |
|---|---|
| Dimension - Height inch | 1.25 in |
| Dimension - Length Overall inch | 2.13 in |
| Dimension - Width inch | 0.81 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | EX |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper Solid Size A | 1/0 AWG;2/0 AWG |
|---|---|
| Conductor - Copper Solid Size B | 1/0 AWG;2/0 AWG |
| Conductor - Copper Str Size A | 1/0 ;2/0 AWG |
| Conductor - Copper Str Size B | 1/0 ;2/0 AWG |
| Conductor - Copper Solid Size A Range | 1/0 AWG-2/0 AWG |
|---|---|
| Conductor - Copper Solid Size B Range | 1/0 AWG-2/0 AWG |
| Conductor - Copper Str Size A Range | 1/0 -2/0 AWG |
| Conductor - Copper Str Size B Range | 1/0 -2/0 AWG |
General
| Application | For Joining A Range Of Copper Cable End To End |
|---|---|
| Installation Torque Recommended in-lb | 180 LBS/in |
| Physical Attribute - Number of Screws | 2 |
| Plated | N |
| Sub Brand | QIKLINK |
| Type | QR |
| Connector Type | Splice;Reducer |
|---|---|
| Material | Copper Alloy |
| Physical Attribute - Screw Type | Hexagonal Bolt |
| Plating Type | Unplated |
| Trade Name | QIKLINK™ |
| UPC | 781810334423 |
Logistics
| Minimum Pack Quantity | 1 |
|---|
