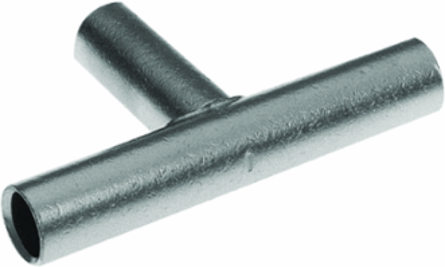

Burndy YST1C1CT Tap Connectors, 1-3/8 Inch Length, 1 AWG Copper, 35 kV Voltage Rating
- MPN: YST1C1CT
- UPC: 781810198490
- PPN: BUR-25016102
CAD
$46.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
UNINSULATED HIGH VOLTAGE COPPER COMPRESSION SPLICE STANDARD BARREL-TAPERED ENDS.
Documentation & Downloads
Specifications

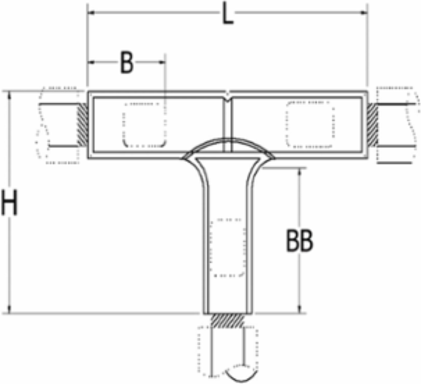

Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - Inside Diameter inch
- 0.36 in
- Dimension - Length BB inch
- 1.38 in
- Dimension - Outside Diameter inch
- 0.46 in
Dimension - B Length inch1.38 in
Dimension - L Length Overall mm95 mm
Dimension - Length Overall inch3.75 in
Dimension - Width inch1.61 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Run
- 1 AWG
- Conductor - Copper Str Tap
- 1 AWG
Conductor - Copper Str Run Range1 AWG
Conductor - Copper Str Tap Range1 AWG
General
- Color Code - Side A
- Green
- Connector Type
- Tap
- Die Index Tap Side
- 11
- Feature - Barrel Type
- Long
- Plated
- Y
- Temperature Rating
- 194
- UPC
- 781810198490
Color Code - Side BGreen
Die Index Run Side11
Feature - Barrel StyleTapered
MaterialCopper
Plating TypeTin - Electro Plated
Trade NameHYTEE™
UPC 12 Digit7818101984900
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
