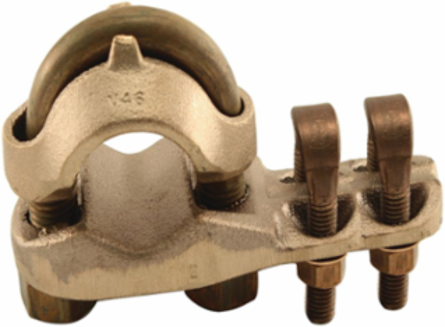

Hubbell VTT3434 V Style Connectors

MPN: VTT3434
UPC: 621945153431
PPN: BUR-02004107

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$282.25/ EA

Qty:

Loading add to cart quantity...

Description

V Style Connectors.

Features

High copper alloy T-Connector for pipe cable, cable tap
DURIUM V-Bolt clamping elements accommodate large range of cable are are particularly suited for extra flexible cable
Twin V elements for additional joint strength against vibration and flexing on tap side

Specifications

Conductor - Connection Combination: Cable to Cable

Conductor - Copper Str Run Range: 300 kcmil-500 kcmil

Conductor - Copper Str Tap Range: 300 kcmil-500 kcmil

Dimension - Height inch: 3.34 in

Dimension - Length Overall inch: 5.25 in

Dimension - Width mm: 57 mm

Physical Attribute - Number of Run Conductors: 1

Plated: N

Product Type: Mechanical

Application: Substation

Type: Bolted Tees

Freight Class Code: 16027000

Image Actual Or Representative: A

Replaced Catalog Number: VTT3434

Material: Copper Alloy

Base Unit of Measure: EA

Carton - Gross Weight per Pack: 0.000 lb.

Carton - Pack Description: Carton

Carton - Total Units: 1

Package - GTIN - Package: 30621945153432

Package Quantity: 2 EA

Pallet Weight: 0.000 lb.

Conductor - Copper Str Run300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil

Conductor - Copper Str Tap300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil

Country of OriginUS

Dimension - L Length Overall mm133 mm

Dimension - Width inch2.25 in

One Wrench InstallationY

Physical Attribute - Number of Tap Conductors1

Plating TypeUnplated

Standards - RoHS Compliance StatusEX

Connector TypeT-Connector

Class CodeB21

Harmonization Code8535908020

Lead Time22 wk

Sub Class CodeB21B03F

Material - HardwareDURIUM™ Silicon Bronze

BOX SIZE0.000x0.000x0.000 (in)

Carton - Number of Sub Packs1

Carton - SCC-14 Next Lower Level Sub Pack00621945153431

Case - SCC-14 Next Lower Level Sub Pack30621945153432

Package - Total Units2 EA

Pallet - GTIN - Package70621945153430

Standard Package Quantity1

Certifications

CSA Approved: No

Downloads
