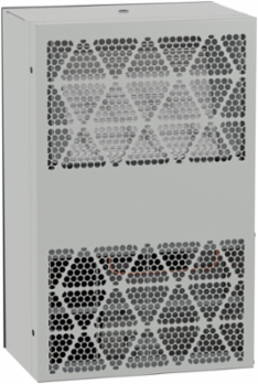

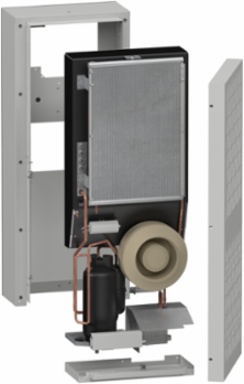

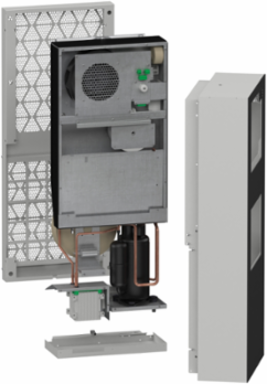

Schneider Electric NSYCUHD600DG Outdoor Connected Cooling Unit, Climasys CU, 600W 230V, 50/60Hz, IP55

MPN: NSYCUHD600DG
PPN: SCH-NSYCUHD600DG
UNSPSC: 40101704

$2451.85

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This new Outdoor Connected Cooling Unit, designed by Schneider Electric, is perfectly adapted for Automation & Control and Electrical distribution panels, installed outdoor and in harsh environment. It’s smart, compact, and reliable. For international business purpose, it’s compliant to IEC14511 and UL60335-1 & UL60335-2-40. This cooling device is made by Steel protected, offering an internal IP55. Its cooling capacity L35-35 is 650W according to EN 14511. Its power voltage is 230V, 50/60Hz, 1 phase. Its native Modbus connectivity is 100% compatible with any Scada system. Remote alarms and operation data makes manufacturing process more dependable with fewer downtimes, with quicker and easier problem fixing, and electrical components expended lifespan. The new Connected Cooling Units are also associated with Software’s and Services, like ProClima Web or IGE XAO suits. By using these tools, in only few minutes, it’s possible to select and optimize one Thermal management solution, and to design one panel (with its enclosures, devices and Thermal solution), with 3D and 2D drawings. Also, the Schneider Electric EcoStruxure Apps and analytics facilitates process supervision with real life data and action recommendations for more efficient operation and maintenance (preventive and predictive).

Features

Alarm, operation & setting info available remotely and locally.
Simple, open and easy, native connectivity with Modbus RTU communication.

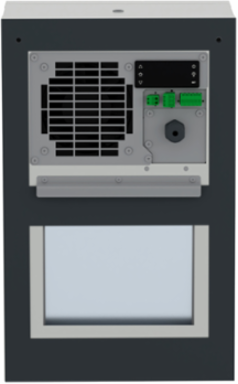

Electronic thermostat with touch screen display
Unique combination of optimized Energy Efficiency Ratio and reduced sizes & weight
Easy product selection with ProClima Web associated with SEE Electrical

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Malta

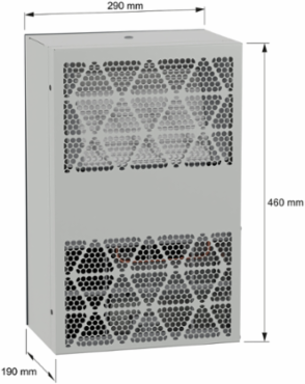

Width	11.42 in
Depth	190 mm

Height	18.11 in
Weight	13000 g

Physical Attributes

Color	Gray RAL 7035)

Complementary Attributes

Line Rated Current	1.8 A
Us Rated Supply Voltage	220...240 V 1 phase 50 Hz EN/IEC230 V +/- 6 % 1 phase 60 Hz UL

Rated Power In W	630 W

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL, IEC, EN
Carbon Footprint Of The End Of Life Phase C1 To C4	25 kg CO2 eq., 25.132805059809684
Carbon Footprint Of The Manufacturing Phase A1 To A3	49 kg CO2 eq., 49.04905445425688
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cooling Gas Type	R513a 0.115 kg)
Energy Efficiency Ratio	1.7
Inrush Current	6 A
Mounting Location	side
Noise Level	62 dB
Pressure	28 bar
Product Destination	for enclosure
Product Or Component Type	cooling unit
Range	ClimaSys
Software Version	v6.2.5-6
Temperature Setting Range	20-50 °C 50/60 Hz
Type Of Ventilation Filter	external circuit
Database Version	2024-01
Height Nominal	460 mm
Width Nominal	290 mm
Nbr. Of Units In Pkg.	1
F Gas Free	Product containing F-gas
Functional Unit Description	To produce 2 kW of cooling, according to the appropriate usage scenario defined in the EN 14825 standard and during the 22-year reference lifetime of the product.& 10& 10- Product dimensions 1000mm x 405mm x 225mm& 10- IP55 conforming to IEC 60529 (on the internal circuit)& 10- IP24 conforming to IEC 60529 (on the external circuit)& 10- Technology: Air/Air& 10- Non-reversible& 10- Cooling capacity - 2kW& 10- SEER - 1.9806& 10- Refrigerant used - R513a& 10- Refill threshold - Cannot Refill& 10- Where Used - Industrial
Functional Unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	7542.113

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	1.2421947660032748, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.8871078433218769, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 996 kg CO2 eq., 2996.1885593021034
Local Publishable Date	2025-07-10
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2301019EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2327
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Control Type	electronic controller
Cooling Power	630 W 50/60 Hz L35-L35460 W 50/60 Hz L35-L50
Incomer Device	M9F23116
Material	steel
Mounting Mode	by screws
Power Consumption In W	370 W 50/60 Hz, L35-L35420 W 50/60 Hz, L35-L50
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Name	CU
Protection Type	15 A (T)
Returnability	No
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	3 073 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Height Useful	460 mm
Width Real	290 mm
Customs Code	8415103040
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	22
Recyclability Potential In %	89

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Take Back	No
Recycled Metal Content At Cr Level	0 %
Air Flow	internal circuit 106 m3/h 50/60 Hzexternal circuit 177 m3/h 50/60 Hz
Circularity Profile	ENVEOLI2301019EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2301019EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Directives	2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility, 2011/65/EU - RoHS
Reach Free Shvc	Yes
Carbon Footprint	3073.499721425495
Ambient Air Temperature For Operation	inside the enclosure 20-50 °C 50/60 Hzoutside the enclosure -20-55 °C 50/60 Hz
Environmental Disclosure	ENVPEP2301019EN
Ip Degree Of Protection	IP55 IEC 60529 on the internal circuit)IP24 IEC 60529 on the external circuit)
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-12-01
Psr Version	PSR-0013-ed3-EN-2023 06 06
F Gas Usage Performance	Product containing F-gas
