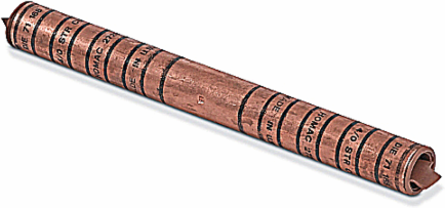

Blackburn 2729 Copper Full-Tension Compression Splice

Copper Full-Tension Compression Splice

Blackburn 2729 Copper Full-Tension Compression Splice

MPN: 2729
UPC: 783786765188
PPN: T-B-2729

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$241.96/ EA

Loading add to cart quantity...

Description

Copper Full Tension Compression Splices, wire size 4/0 (7-19) Stranded, length 8-3/8 inch, installing dies -71,840,168.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Blackburn

Special Features: All splices are marked with conductor size, installing die references, and compression locations. Designed to develop 95% or more of the conductors rated strength.

Size: 8-3/8 inch long

Conductor Range: 4/0(7-19) Stranded

Material: Copper

IGCC4669 Wire or cable compression splice

TypeCopper Full-Tension Compression Splice

StandardANSI C119.4

ConnectionCrimp/Compression

Number Of Conductors2

InsulationNone

Packaging

Outer Quantity: 25

Weight Uom: 94 lbs. per 100

Outer Dimensions (inches)9.5x5.7x4.2
