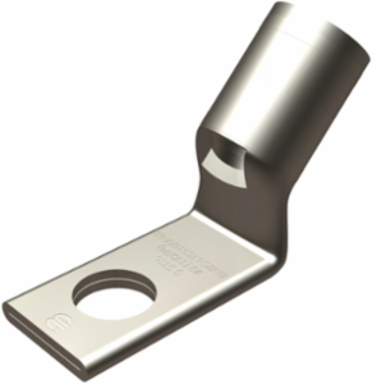

Burndy YAV4CLTC38FX45 Copper Hylug Terminal; 1 Hole; 600V; 35kV; 3/8 Stud; 4 AWG; Tin Plated
- MPN: YAV4CLTC38FX45
- UPC: 781810080467
- PPN: BUR-518509
CAD
$22.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing Hylug; 1 Hole with Inspection Window; #4 WELD, 5(91/#24)-4(105/#24) DLO, #4 AWG Code, 40 & 50 Navy; 600V-35kV; 3/8" stud; Compression; 0.40 in BCD
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1/2 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Height inch | 0.87 in |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 1.63 in |
| Dimension - Outside Diameter inch | 0.38 in |
| Dimension - Strip Length inch | 1/2 |
| Physical Attribute - Tongue Angle | 45 Degree |
| Dimension - B Length inch | 0.50 in |
|---|---|
| Dimension - D inch | 0.83 in |
| Dimension - Hole Size inch | 0.40 in |
| Dimension - L Length Overall mm | 41 mm |
| Dimension - N inch | 0.41 in |
| Dimension - Pad Width inch | 0.58 in |
| Dimension - Z inch | 0.42 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 5 (91/#24) DLO;4 (105/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 4 AWG |
| Conductor - Copper Flex K Size | 4 AWG |
| Conductor - Copper Flex M Size Range | 4 AWG |
| Conductor - Copper Str Navy Size | 40 (19) Navy;50 (19) Navy |
| Conductor - Copper Str Size | 4 AWG |
| Conductor - CopperWeld Str Size Range | 4 A AWG-4 P AWG |
| Conductor - Copper Flex G Size | 4 AWG |
|---|---|
| Conductor - Copper Flex I Size | 4 AWG |
| Conductor - Copper Flex M Size | 4 AWG |
| Conductor - Copper Solid Size | 4 AWG |
| Conductor - Copper Str Navy Size Range | 40 (19) Navy-50 (19) Navy |
| Conductor - CopperWeld Str Size | 4 A AWG;4 D AWG;4 N AWG;4 P AWG |
| Conductor - Material | Copper |
General
| Color Code | Gray |
|---|---|
| Die Index | 8 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin - Electro Plated |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100804677 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810080467 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
