Bussmann

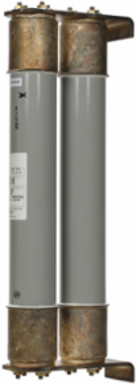

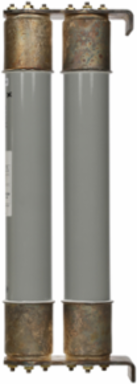

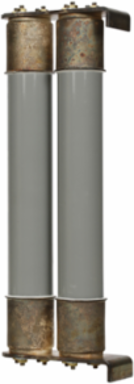

Bussmann 15HCL-25E Current Limiting Fuse, 25A, 14.4 kV, Diameter 3 Inch, E-Rated Power

Current Limiting Fuse, 25A, 14.4 kV, Diameter 3 Inch, E-Rated Power
Current Limiting Fuse, 25A, 14.4 kV, Diameter 3 Inch, E-Rated Power
Current Limiting Fuse, 25A, 14.4 kV, Diameter 3 Inch, E-Rated Power
  • MPN: 15HCL-25E
  • UPC: 782114982082
  • PPN: BUS-15HCL-25E

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3907.22/ EA

Description

Current Limiting Fuse, 25A, 14.4 kV, Diameter 3 Inch, E-Rated Power

Specifications

Specifications

Height
3 IN
Width
3 IN
Type
E-Rated power
Voltage Rating
14.4 kV
Interrupt Rating
63 kAIC
Mounting
Non-disconnect
Barrels
Single barrel
Maximum Voltage
15.5 kV
Notes
Consult factory for mountings.
Length.001 IN
Weight.001 LB
Special FeaturesSingle barrel, Indoor
Amperage Rating25A
ClassClass E
Diameter3 IN
Clip CenterClip-lock
SeriesHCL
