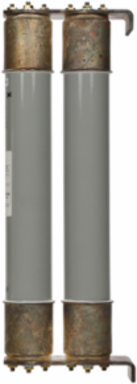

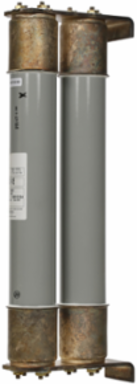

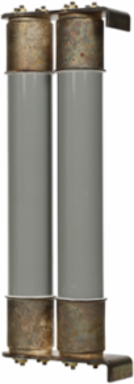

Bussmann 15HCL-80E Current Limiting Fuse 3 Inch, 80A, E-Rated Power, 15.5 kV Maximum Voltage

Current Limiting Fuse 3 Inch, 80A, E-Rated Power, 15.5 kV Maximum Voltage
Current Limiting Fuse 3 Inch, 80A, E-Rated Power, 15.5 kV Maximum Voltage
Current Limiting Fuse 3 Inch, 80A, E-Rated Power, 15.5 kV Maximum Voltage
  • MPN: 15HCL-80E
  • UPC: 782114892787
  • PPN: BUS-15HCL-80E

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4348.28/ EA

Description

Current Limiting Fuse 3 Inch, 80A, E-Rated Power, 15.5 kV Maximum Voltage

Specifications

Specifications

Height
3 IN
Width
3 IN
Type
E-Rated power
Voltage Rating
14.4 kV
Interrupt Rating
50 kAIC
Mounting
Non-disconnect
Barrels
Single barrel
Maximum Voltage
15.5 kV
Notes
Consult factory for mountings.
Length.001 IN
Weight.001 LB
Special FeaturesSingle barrel, Indoor
Amperage Rating80A
ClassClass E
Diameter3 IN
Clip CenterClip-lock
SeriesHCL
