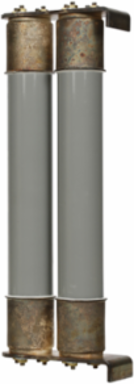

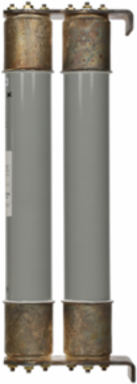

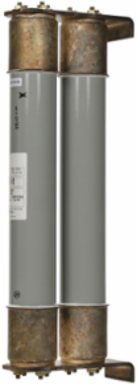

Bussmann 15HCL-40E Current Limiting Fuse 3 Inch Class E 40A 15.5 kV 63 kAIC
- MPN: 15HCL-40E
- UPC: 782114982068
- PPN: BUS-15HCL-40E
CAD
$4364.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Current Limiting Fuse 3 Inch Class E 40A 15.5 kV 63 kAIC
Documentation & Downloads
Specifications
Key Specifications
| Height | 3 IN |
|---|---|
| Width | 3 IN |
| Type | E-Rated power |
| Voltage Rating | 14.4 kV |
| Interrupt Rating | 63 kAIC |
| Mounting | Non-disconnect |
| Barrels | Single barrel |
| Maximum Voltage | 15.5 kV |
| Notes | Consult factory for mountings. |
| Length | .001 IN |
|---|---|
| Weight | .001 LB |
| Special Features | Single barrel, Indoor |
| Amperage Rating | 40A |
| Class | Class E |
| Diameter | 3 IN |
| Clip Center | Clip-lock |
| Series | HCL |
