Mersen

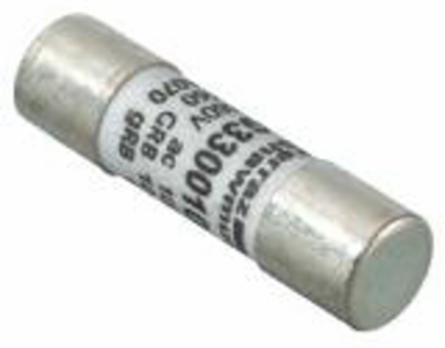

Mersen X076932 Protistor® 10x38 Cylindrical Fuse-Link, 500VAC, 10A with Trip Indicator

Protistor® 10x38 Cylindrical Fuse-Link, 500VAC, 10A with Trip Indicator
  • MPN: X076932
  • PPN: FER-X076932

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$163.10/ EA

Description

Extremely high breaking capacity fuses: Protection of power semiconductors complying with IEC standard 60269-1 and -4.

Specifications

Specifications

Rated voltage AC IEC
500 V
ROHS Compliant
Yes
Speed/Characteristic
aR
Mounting
Clip
Melting I2t
3.6 A²s
Design Details
URB
Indication System Type
Striker
Connection/Terminal Type
Ferrule
Power Dissipation at Rated Current Value
1.9 W
Weight
0.02 lb
Ampere Rating10 A
AC or DCAC
Fuse Size10x38
Clearing I2t At Rated Voltage110 A²s
AC Max I.R./Breaking Capacity: I150 kA
Indication SystemYes
Connection/Terminal MaterialSilver-Plated Copper
Body/Insulating MaterialCeramic
Length1.54 in
