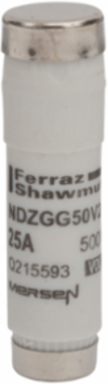

Mersen Q215593 D Fuse-Link NDZ 25A 500VAC Ceramic Body Yellow

D Fuse-Link NDZ 25A 500VAC Ceramic Body Yellow
  • MPN: Q215593
  • PPN: FER-Q215593

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$21.98/ EA

Description

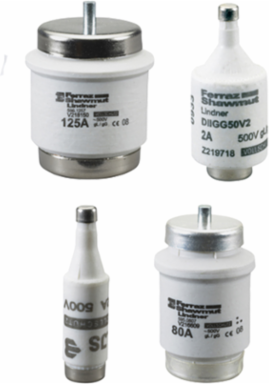

The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.

Specifications

Specifications

Rated voltage AC IEC
500 V
Ampere Rating
25 A
ROHS Compliant
Yes
Speed/Characteristic
gG
Mounting
Clip
Indication System
Yes
Body/Insulating Material
Ceramic
Weight
0.029 lb
Rated voltage DC IEC500 V
Identification Color CodeJaune
AC or DCAC/DC
Fuse SizeNDZ
AC Max I.R./Breaking Capacity: I150 kA
Indication System TypeColored indicator flag Visual Indicator
Length1.97 in
