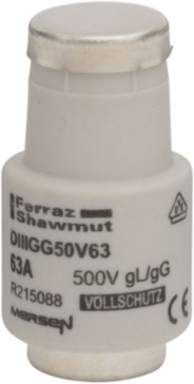

Mersen R215088 D Fuse-Link gG, DIII, 500VAC, 63A, 1.06 Inch Diameter, Ceramic Body
- MPN: R215088
- PPN: FER-R215088
CAD
$33.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

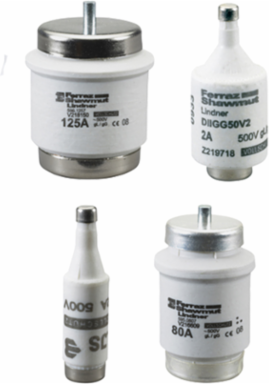

The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.
Specifications
Key Specifications
- Rated voltage AC IEC
- 500 V
- Ampere Rating
- 63 A
- ROHS Compliant
- Yes
- Speed/Characteristic
- gG
- Mounting
- Clip
- Indication System
- Yes
- Body/Insulating Material
- Ceramic
- Length
- 1.97 in
Rated voltage DC IEC500 V
Identification Color CodeCuivre
AC or DCAC/DC
Fuse SizeDIII
AC Max I.R./Breaking Capacity: I150 kA
Indication System TypeColored indicator flag Visual Indicator
Power Dissipation at Rated Current Value6 W
Weight0.114 lb
