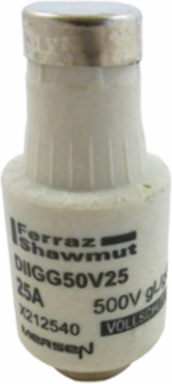

Mersen X212540 D Fuse-Link gG DII 500V 25A Yellow, 0.87 Inch Diameter, Ceramic Body
- MPN: X212540
- PPN: FER-X212540
CAD
$17.55
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

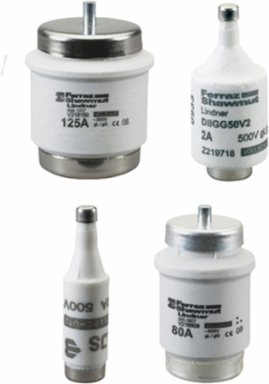

The D fuse-system is the first generation of screw fuse-system in the german DIN standard. It is still used in many installations. Applications are low voltage ditribution units, where non trained persons are allowed to change the fuse-links. The D fuse range comprises the sizes NDZ, DII, DIII, DIV, DV.
Specifications
Key Specifications
| Rated voltage AC IEC | 500 V |
|---|---|
| Ampere Rating | 25 A |
| ROHS Compliant | Yes |
| Speed/Characteristic | gG |
| Mounting | Clip |
| Indication System | Yes |
| Body/Insulating Material | Ceramic |
| Length | 1.97 in |
| Rated voltage DC IEC | 500 V |
|---|---|
| Identification Color Code | Jaune |
| AC or DC | AC/DC |
| Fuse Size | DII |
| AC Max I.R./Breaking Capacity: I1 | 50 kA |
| Indication System Type | Colored indicator flag Visual Indicator |
| Power Dissipation at Rated Current Value | 3.5 W |
| Weight | 0.059 lb |
