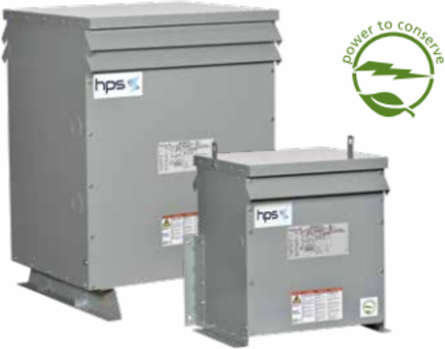

Hammond Power Solutions EG3A0112KB Express G 112.5kVA 480D→208Y/120 Delta-WyeN Type 1 Case CN5 (EG3A0112KB)

  • MPN: EG3A0112KB
  • UPC: 803423146429
  • PPN: HPS-EG3A0112KB
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

HPS Express-G energy-efficient commercial low-voltage three-phase distribution transformer. Rated 112.5 kVA. Delta-WyeN connection.

Features

  • DOE 2016 / NRCan 2019 energy-efficient compliant
  • Energy-efficient commercial grade

Documentation & Downloads

Specifications

Identification

Generation3
Phase ConfigurationDelta-WyeN
Secondary Voltage CodeB
Secondary Voltage (Decoded)208Y/120
Phase CodeA
Primary Voltage CodeK
Primary Voltage (Decoded)480D
Enclosure TypeType 1

Physical

Width29 in (737 mm)
Height39.1 in (993 mm)
Depth26.5 in (673 mm)
Weight750 lb (340 kg)

Construction

Case StyleCN5
Wiring DiagramSCD 3E

Electrical

Secondary Voltage208Y/120
kVA Rating112.5
Frequency60 Hz
Express G 112.5kVA 480D→208Y/120 Delta-WyeN Type 1 Case CN5 (EG3A0112KB)
