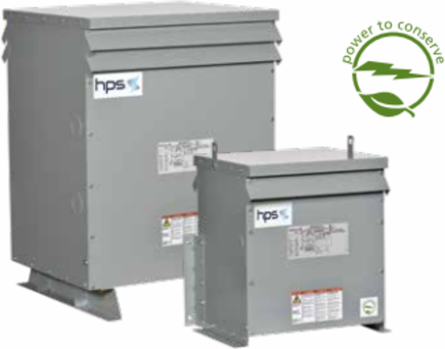

Hammond Power Solutions EG3A0150KB Express G Commercial Distribution Transformer 150kVA 480D→208Y/120 Delta-WyeN Type 1 Case CN5, EG3A0150KB
- MPN: EG3A0150KB
- UPC: 803423146436
- PPN: HPS-EG3A0150KB
Quote Required
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HPS Express-G energy-efficient commercial low-voltage three-phase distribution transformer. Rated 150 kVA. Delta-WyeN connection. Primary voltage 480D; secondary voltage 208Y/120; 60 Hz.
Features
- DOE 2016 / NRCan 2019 energy-efficient compliant
- Energy-efficient commercial grade
Documentation & Downloads
Specifications
Electrical
| Secondary Voltage | 208Y/120 |
|---|---|
| kVA Rating | 150 |
| Frequency | 60 Hz |
|---|---|
| Primary Voltage | 480 Delta |
Identification
| Generation | 3 |
|---|---|
| Enclosure Type | Type 1 |
| Phase Configuration | Delta-WyeN |
|---|
Construction
| Case Style | CN5 |
|---|---|
| Mounting | F |
| Wiring Diagram | SCD 3E |
|---|
Physical
| Width | 29 in (737 mm) |
|---|---|
| Height | 39.1 in (993 mm) |
| Depth | 26.5 in (673 mm) |
|---|---|
| Weight | 885 lb (401 kg) |
