Brady DAT-101-652-10 DATAB Amber Polyimide Labels, 0.2" H x 0.8" W
- MPN: DAT-101-652-10
- UPC: 662820273011
- PPN: BRD-DAT-101-652-10
- UNSPSC: 55121612
CAD
$1949.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-652 material is ideal for use on printed circuit board and electronic component pre-process labeling.
Features
- Pre-heat can be employed to further enhance print permanence in the case of extreme solvent or abrasion exposure
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- Amber
- Corner Type
- Square Corners
- Finish
- Matte
- Label/Media Format
- Pack
- Print Technology
- Dot Matrix
- Printer Compatibility
- Dot Matrix
- Quantity per Row
- 10
- Shape
- Rectangle
- Total Qty per Pack
- 10000 Label(s) / Pack
- Trade Name
- DATAB®
- After Process
- Yes, this material will work with this application
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant

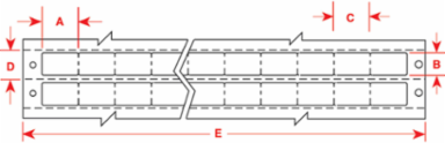

- Dimensions
- 0.2 in H x 0.8 in W
- Dimensions 2
- 0.2 in H x 0.8 in W
- Height (mm/cm/m)
- 5.08 mm
- Label/Tape Size (in/ft/yd)
- 0.2 in H x 0.8 in W
- Maximum Service Temperature °F
- 536 °F
- Minimum Service Temperature °F
- -94 °F
- Printable Area Height (mm/cm/m)
- 5.08 mm
- Sign Size-General
- 0.2 in x 0.8 in
- Thickness (in/ft/yd)
- 0.0044 in
- Vertical Repeat
- 0.333 in
- Web Width (mm/cm/m)
- 228.60 mm
- Width (mm/cm/m)
- 20.32 mm
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-M-81531; MIL-P-55110D; MIL-STD-202F
For Use with PrinterDot Matrix Printers
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Quantity per Roll10000
Ribbon SeriesR2000; R5000
Suggested Ribbon SeriesR5000
Total Quantity10000
Adhesive TypePermanent Acrylic
Brady Material NumberB-652
MaterialPolyimide
SAP B-NumberB-652
Dimensions (Metric)20.32 mm W x 5.08 mm H
Height (in/ft/yd)0.2 in
Horizontal Repeat (mm)20.32 mm
Maximum Service Temperature °C280 °C
Minimum Service Temperature °C-70 °C
Printable Area Dimensions (Metric)5.08 mm H x 20.32 mm W
Printable Area Width (mm/cm/m)20.32 mm
Size - Width (mm)20.32 mm
Thickness (mm/cm/m)0.112 mm
Vertical Repeat (mm)8.46 mm
Width (in/ft/yd)0.8 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
