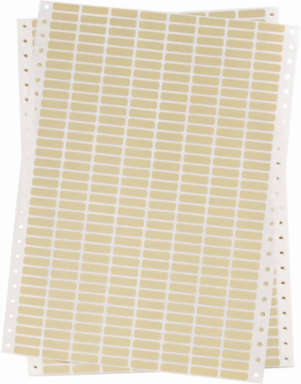

Brady DAT-50-652-10 DATAB Amber Polyimide Labels, 0.25" H x 0.9" W
Brady DAT-50-652-10 DATAB Amber Polyimide Labels, 0.25" H x 0.9" W
- MPN: DAT-50-652-10
- UPC: 662820289142
- PPN: BRD-DAT-50-652-10
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2371.28/ EA
Description
B-652 material is ideal for use on printed circuit board and electronic component pre-process labeling.
Features
- Pre-heat can be employed to further enhance print permanence in the case of extreme solvent or abrasion exposure
Specifications
Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- Amber
- Corner Type
- Rounded Corners
- Finish
- Matte
- Industry
- Aerospace; Automotive; Electronics; Manufacturing
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Circuit Board
- Quantity per Roll
- 10000
- Ribbon Series
- R2000; R5000
- Suggested Ribbon Series
- R5000
- Total Quantity
- 10000
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-652
- Material
- Polyimide
- SAP B-Number
- B-652
- Dimensions (Metric)
- 22.86 mm W x 6.35 mm H
- Height (in/ft/yd)
- 0.25 in
- Horizontal Repeat (mm)
- 25.40 mm
- Maximum Service Temperature °C
- 280 °C
- Minimum Service Temperature °C
- -70 °C
- Printable Area Dimensions (Metric)
- 6.35 mm H x 22.86 mm W
- Printable Area Width (mm/cm/m)
- 22.86 mm
- Size - Width (mm)
- 22.86 mm
- Thickness (mm/cm/m)
- 0.112 mm
- Vertical Repeat (mm)
- 8.46 mm
- Width (in/ft/yd)
- 0.9 in
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
Enables Industry ComplianceASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-M-81531; MIL-P-55110D; MIL-STD-202F
For Use with PrinterDot Matrix Printers
Label/Media FormatPack
Print TechnologyDot Matrix
Printer CompatibilityDot Matrix
Quantity per Row8
ShapeRectangle
Total Qty per Pack10000 Label(s) / Pack
Trade NameDATAB®
After ProcessYes, this material will work with this application
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
Dimensions0.25 in H x 0.9 in W
Dimensions 20.25 in H x 0.9 in W
Height (mm/cm/m)6.35 mm
Label/Tape Size (in/ft/yd)0.25 in H x 0.9 in W
Maximum Service Temperature °F536 °F
Minimum Service Temperature °F-94 °F
Printable Area Height (mm/cm/m)6.35 mm
Sign Size-General0.25 in x 0.9 in
Thickness (in/ft/yd)0.0044 in
Vertical Repeat0.33 in
Web Width (mm/cm/m)276.86 mm
Width (mm/cm/m)22.86 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
