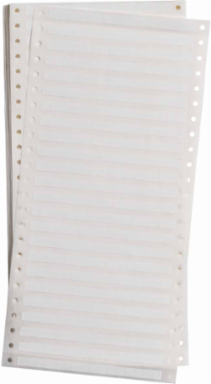

Brady DAT-108-619-10 DATAB Matte Polyester Labels, 0.3" H x 0.3" W, Pack of 10000 Labels
- MPN: DAT-108-619-10
- UPC: 662820273080
- PPN: BRD-DAT-108-619-10
- UNSPSC: 55121612
CAD
$493.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permanent Polyester (B-619) is suitable for marking components in control panels, electronic components and circuit boards, faceplates and electrical receptacles.
Features
- Leaves no adhesive residue when removed, so it's ideal for permanent or temporary applications
- Matte finish material with permanent acrylic adhesive can be thermal transfer printed or dot matrix printed
- UL approved;CSA accepted
- Good smudge and solvent resistance in temperatures of -94 to 293° F (-70 to 145° C)
Documentation & Downloads
Specifications
Key Specifications
| Applications | Circuit Board Labeling; Component and Equipment Labeling |
|---|---|
| Brand Name | Brady® |
| Color | White |
| Corner Type | Square Corners |
| Finish | Matte |
| Label/Media Format | Pack |
| Print Technology | Dot Matrix |
| Printer Compatibility | Dot Matrix |
| Quantity per Row | 16 |
| Shape | Square |
| Total Qty per Pack | 10000 Label(s) / Pack |
| Trade Name | DATAB® |
| After Process | Yes, this material will work with this application |
| Label Properties | Heat Resistant Labels; Permanent Adhesive Labels |
| Resistance Properties | Abrasion-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant |
| Dimensions | 0.3 in H x 0.3 in W |
| Dimensions 2 | 0.3 in H x 0.3 in W |
| Height (mm/cm/m) | 7.62 mm |
| Label/Tape Size (in/ft/yd) | 0.3 in H x 0.3 in W |
| Maximum Service Temperature °F | 293 °F |
| Minimum Application Temperature °F | 50 °F |
| Minimum Service Temperature °F | -94 °F |
| Printable Area Height (mm/cm/m) | 7.62 mm |
| Sign Size-General | 0.3 in x 0.3 in |
| Thickness (in/ft/yd) | 0.0036 in |
| Vertical Repeat | 0.5 in |
| Web Width (mm/cm/m) | 147.32 mm |
| Width (mm/cm/m) | 7.62 mm |
| Board Application | Through Hole - Top |
|---|---|
| Bulk Part | Not a Bulk Part |
| Compatible Surface Types | High Surface Energy |
| Enables Industry Compliance | ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; CSA Approved; UL Recognized |
| For Use with Printer | Dot Matrix Printers |
| Primary Noun, Basic Function | Label |
| Printer and Label Applications | Circuit Board; General Identification; Rating & Name Plates |
| Quantity per Roll | 10000 |
| Ribbon Series | R2000; R5000 |
| Suggested Ribbon Series | R5000 |
| Total Quantity | 10000 |
| Adhesive Type | Permanent Acrylic |
| Brady Material Number | B-619 |
| Material | Polyester |
| SAP B-Number | B-619 |
| Dimensions (Metric) | 7.62 mm W x 7.62 mm H |
| Height (in/ft/yd) | 0.3 in |
| Horizontal Repeat (mm) | 7.62 mm |
| Maximum Service Temperature °C | 145 °C |
| Minimum Application Temperature °C | 10 °C |
| Minimum Service Temperature °C | -70 °C |
| Printable Area Dimensions (Metric) | 7.62 mm H x 7.62 mm W |
| Printable Area Width (mm/cm/m) | 7.62 mm |
| Size - Width (mm) | 7.62 mm |
| Thickness (mm/cm/m) | 0.091 mm |
| Vertical Repeat (mm) | 12.70 mm |
| Width (in/ft/yd) | 0.3 in |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
