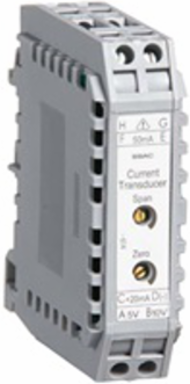

Littelfuse DCSA20 DCSA20 - DCSA Series
- MPN: DCSA20
- UPC: 079458992069
- PPN: LTF-DCSA20
CAD
$219.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
See datasheet for operation details.
Documentation & Downloads
Specifications
Key Specifications
| Output Voltage | 10 to 30VDC |
|---|---|
| Momentary Output Voltage (V) | 40VDC for 1m |
| Response Time (ms) | ≅300ms |
| Current Sensor Range | 0 - 20mA AC; factory calibrated to ±0.5% of full scale |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Breakdown | ≥2500V RMS terminals to mounting surface |
| Span Adjust (mA) | 18mA - 22mA |
| Temperature Coefficient (% / C) | ±0.05%/oC |
| Mounting Method | DIN 1 and DIN 3 rail mounting |
| Storage Temperature (F/C) | -40° to 85°C (-40°F to 185°F) |
| Weight (lbs/g) | ≅1.6oz (45.4g) |
| Output Range | 4-20mA or 1 to 5VDC or 2 to 10VDC |
|---|---|
| Output Type | Analog current directly proportional to input current |
| Repeat Accuracy (%) | ±0.25% of full scale under fixed conditions |
| Polarity | Units are reverse polarity protected |
| Isolation Voltage (V) | Not isolated |
| Adjustment Type | Mini-screw multi-turn potentiometer |
| Zero Adjust (mA) | ≅3.75 - 4.25 mA |
| Termination Type | Wire clamp for 22-14 AWG (0.336mm2-2.5mm2) |
| Operating Temperature | -30° to 60°C (-22°F to 140°F) |
| Humidity | 95% relative non-condensing |
