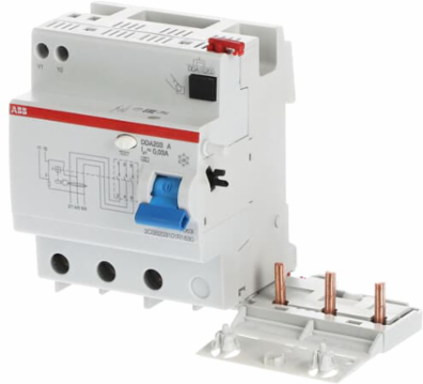

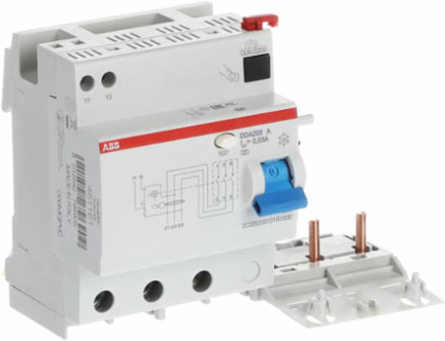

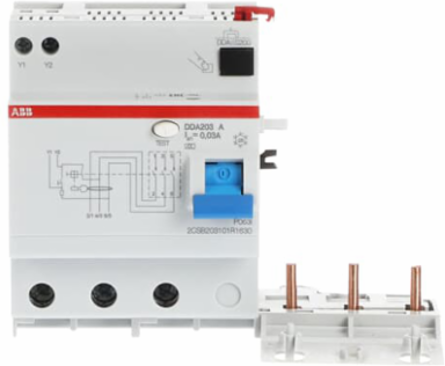

ABB 2CSB203101R1630 DDA203 A-63/0.03 Residual Current Device Block
- MPN: 2CSB203101R1630
- UPC: 888614246584
- PPN: ABB-2CSB203101R1630
CAD
$731.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.
Specifications
Installation
- Instructions and Manuals
- 9AKK108467A7091
Dimensions
- Product Net Width
- 122 mm
- Product Net Depth / Length
- 76 mm
Product Net Height93 mm
Product Net Weight0.311 kg
Technical
- Standards
- IEC/EN 61009 Ann. G
- Rated Voltage (Ur)
- 230/400 V
- Rated Insulation Voltage (Ui)
- 500 V
- Rated Current (In)
- 63 A
- Leakage Current Type
- A
- Power Loss
- 7.6 W
- Electrical Endurance
- 10000 cycle
- Operating Characteristic
- Instantaneous
Type of Residual CurrentA type
Rated Operational Voltage230/400 V
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Residual Current30 mA
Rated Frequency (f)50 … 60 Hz
Power Supply ConnectionArbitrary
Number of Poles3
Connecting CapacityRigid 25 ... 25 mm²Flexible 25 ... 25 mm²
Classifications
- ETIM 9
- EC002297 - Residual current circuit breaker (RCCB) module
- WEEE B2C / B2B
- Business To Consumer
- eClass
- V11.0 : 27142210
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
CN885363030
Object Classification CodeF
Environmental
- Ambient Temperature
- -25...55 °C
- Degree of Protection
- IP2X
- Resistance to Shock acc. to IEC 60068-2-27
- 25g 2 shocks 13 ms
- RoHS Information
- 9AKK106713A5614
- Environmental Information
- Refer to RoHS
Ambient Air TemperatureOperation -25...55 °C
Resistance to Vibrations acc. to IEC 60068-2-60.1 mm or 1 g - 20 cycles at 5…150…5 Hz
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration9AKK108467A9482
Conflict Minerals Reporting Template (CMRT)9AKK108468A3363
Technical UL/CSA
- Short-Circuit Current Rating (SCCR)
- 0.03 ... 0.03 A
Ordering
- Minimum Order Quantity
- 1 piece
- Package Level 1 Gross Weight
- 0.368 kg
Package Level 1 Unitsbox 1 piece
E-Number (Finland)3259831
