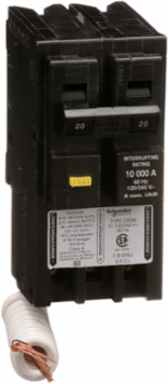

Schneider Electric CHOM220GFI Mini Circuit Breaker, 20A, 2 Pole, 120/240V, 10kA, Ground Fault Class A
Schneider Electric CHOM220GFI Mini Circuit Breaker, 20A, 2 Pole, 120/240V, 10kA, Ground Fault Class A
- MPN: CHOM220GFI
- UPC: 785901896999
- PPN: SCH-CHOM220GFI
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$221.75/ EA
Description
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 2A at 12/24 VAC. HOM breakers provide 1 kA breaking capacity. This Homeline ground fault circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. Class A denotes a ground fault circuit interrupter that will trip when a fault current to ground is 6 milliamperes or more. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1. inch and depth of 2.98 inches. CHOM Homeline miniature circuit breakers are CSA certified. {"1" 2018-04-13 05:11:02,"2" 2018-04-13 05:11:02}-mounting mode plug-in-poles description 1P-Range Presentation
Specifications
- Amperage
- 20 A
- Voltage
- 120/240 V AC
- Circuit Breaker Type
- Ground fault protecting Class A 6 mA
- Electrical Connection
- Screw clamp terminals
- Wire Gauge Range
- AWG 12...AWG 4 aluminum/copper
- Width
- 1 in
- Certification
- CSA
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
- Sustainable Offer Status
- Green Premium product
- Product Or Component Type
- Miniature circuit-breaker
- Range Of Product
- Homeline
- Reach Regulation
- SVHC above threshold
Poles2P
Short-Circuit Current10 kA
Mounting ModePlug-on
Number of Spaces Required2
Height3.13 in
Depth2.98 in
Circuit Breaker ApplicationHACR rated
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environmental DisclosureENVPEP2212006
Circularity ProfileENVEOLI2212006
China Rohs RegulationProduct out of China RoHS scope
