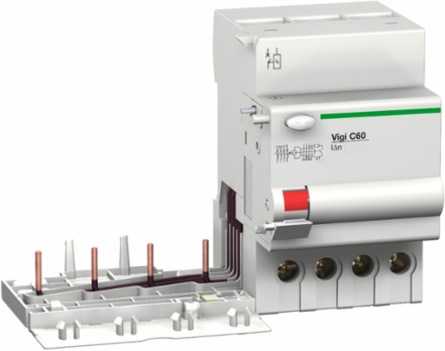

Schneider Electric M9V14463 Vigi C60 Residual Current Device 4P 63A 300mA 400V IP20
- MPN: M9V14463
- PPN: SCH-M9V14463
CAD
$775.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Vigi C60 is a modular add-on residual current devices. It is a 4P and rated current is 63A. The earth leakage protection class is AC type with a sensitivity of 300mA and a voltage independent technology. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. This product is compliant with EN/IEC 61009-1 and EN/IEC 61009-2-1 standard. The Ue rated operational voltage is 400VAC or 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The pollution degree is 3. It can be mounted on DIN rail. The width in 9mm pitches is 7. The product color is light grey (RAL7035). The dimensions are (W) 63mm x (H) 87mm x (D) 74mm. The weight is 210g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 60°C.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth74 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for bottom connection
Complementary Attributes
- Line Rated Current
- 63 A EN/IEC 61009-1
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Certificate Agency
- EN/IEC 61009-1, EN/IEC 61009-2-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0145829633406218, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.00134309995571319
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 120 kg CO2 eq., 120.267857142857
- Local Publishable Date
- 2026-07-13
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Device Short Name
- Vigi C60
- Electromagnetic Compatibility
- 8/20 µs impulse withstand, 250 A EN/IEC 61009-1
- Local Signalling
- fault indication
- Mounting Support
- DIN rail
- Network Type
- AC
- Power Losses Per Pole
- 3 W
- Product Or Component Type
- add-on residual current device
- Range Of Product
- Multi9
- Returnability
- No
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 121 kg CO2 eq.
- Tropicalisation
- 2 IEC 60068-1
- Pep Code
- ENVPEP1409017EN
- Pep Verification Date
- 2019-09-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; consumption mix, at consumer; 220V; CN
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; consumption mix, at consumer; 220V; CN
- Height Nominal
- 87 mm
- [Ue] Rated Operational Voltage
- 400/415 V AC 50 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 4 kVEN/IEC 61009-1
- Earth-leakage Protection Class
- type AC
- Halogen-free Status
- Product contains halogen above thresholds
- Package Weight(Lbs)
- 255 g
- Warranty (In Months)
- 18
- Tsca Regulation
- Does not contain Section 6H Chemical
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Connections - Terminalstunnel type terminal (bottom)1-35 mm² - rigid, tunnel type terminal (bottom)1-25 mm² - flexible, tunnel type terminal (bottom)1-25 mm² - flexible with ferrule
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0161597863031298, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.688150770005883
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Electrical Connection To Mcbby screws
Energy Efficiency OptimizedFalse
Mounting Modeclip-on
Network Frequency50 Hz
Number Of Poles4P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeMulti9
Residual Current Tripping Technologyvoltage independent
Software VersionEIME v5.8.1
Tightening Torque3.5-3.5 N.m bottom
Total Power Losses9 W
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 415V and rated current 25A ensuring isolation characterized by rated voltage 4kV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 220V; CN
Recyclability Potential In %28
Width Nominal63 mm
[Ui] Rated Insulation Voltage500 V AC 50 Hz EN/IEC 61009-1
Earth-leakage Sensitivity300 mA EN/IEC 61009-1
Earth-leakage Protection Time Delayinstantaneous
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 120.988093762462
- Ambient Air Temperature For Operation
- -5-60 °C-5-60 °C
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1409017EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-60 °C, -40-60 °C
Halogene PerformanceProduct contains halogen above thresholds
Mercury FreeYes
9 Mm Pitches7
Environmental DisclosureENVPEP1409017EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardNo
Product CompatibilityC60
Relative Humidity95-95 % 55-55 °C
Pep Verification Date2019-09-02
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- add-on residual current device
Range Of ProductMulti9
ETIM
- ETIM 8
- EC002297
ETIM 9EC002297
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
