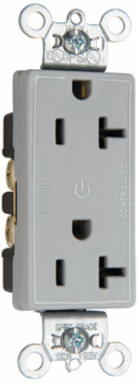

Pass & Seymour 26352CHGRY 20A 125V Controlled Duplex Receptacle, Gray, Width 1.322 Inch, Height 2.635 Inch

20A 125V Controlled Duplex Receptacle, Gray, Width 1.322 Inch, Height 2.635 Inch
  • MPN: 26352CHGRY
  • UPC: 785007032864
  • PPN: P-S-26352CHGRY

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$12.67/ EA

Description

This durable, dependable Plug Load receptacle is designed to help you meet ASHRAE energy standards. The controlled marking printed on the tough nylon face is both NEMA-approved and compliant with the National Electrical Code.

Features

  • NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.
  • Can be used to control loads using the Wattstopper DLM system and other building control systems.
  • Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
  • One-piece, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty compact design for easier installation and long lasting performance.
  • Terminal compartments isolated from each other for positive conductor containment.
  • Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
  • All devices fit standard #26 opening wall plate.

Specifications

Specifications

Depth
0.78 in
Height
2.635 in
Product Line
Pass & Seymour
Country of Origin
Mexico
Standard
FEDSPEC
Number of Wires
4.0
Wire Size
14 - 10 AWG
Features
Decorator Style
Number of Receptacles
2.0
Number of Poles
Double Pole
NEMA Configuration Code
5-20R
Connection Location
Back and Side
Warranty Type
1-Year Limited Warranty
ColorGray
Width1.322 in
Amperage20.0 A
Voltage125.0 V
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
FeaturesHalf-Controlled
Outlet TypeStraight Blade
Application SectorCommercial
Outlet TypeEnergy Saving On/Off
Wire Connection TypeScrew Terminals
Wire Connection TypeInternal Pressure Plates
