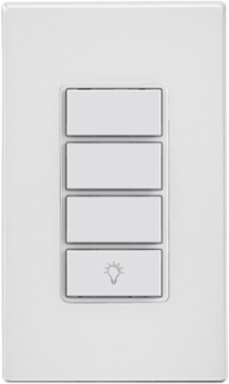

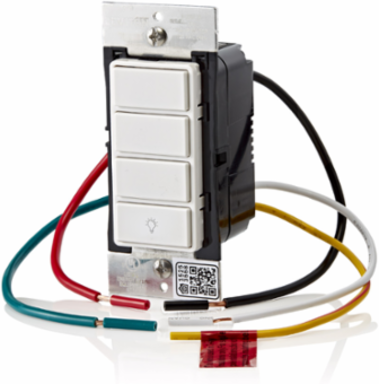

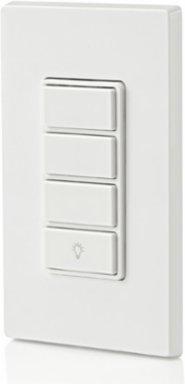

Leviton D2SCS-1BW Decora Smart Scene Controller Switch, 15A General Use, Wi-Fi, White
- MPN: D2SCS-1BW
- UPC: 078477472644
- PPN: LEV-D2SCS-1BW
CAD
$129.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

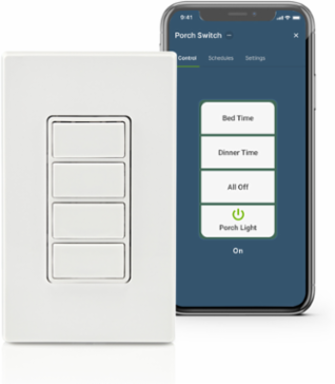

Decora Smart Scene Controller Switch, single pole, 3-way, or multi-location when used with the DD0SR Wired Switch Companion or the DAWSC Wire-Free Anywhere Switch Companion. 15 Amp General Use, 5A LED/CFL/Electronic Ballast, 1500W Incandescent/Halogen, 15 Amp Magnetic Ballast, ¾ HP Motor, neutral wire required – White
Features

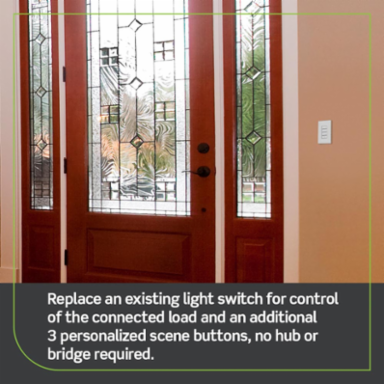

- Replace an existing light switch for control of the connected load and additional three (3) scene buttons
- The bottom button (Switch) provides ON/OFF control and works with Alexa, Hey Google, and Apple HomeKit/Siri for voice control

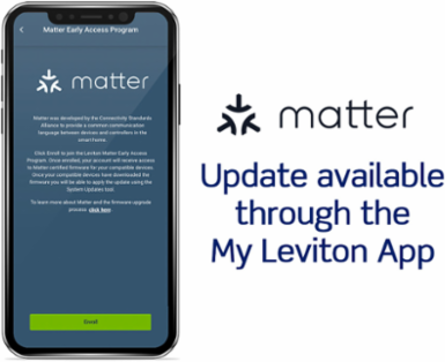

- MATTER: Firmware update available via the My Leviton app to enable Matter connectivity
- Works with My Leviton, Amazon Alexa, Hey Google, Apple Home/Siri, SmartThings, Matter
- Switching of wired general purpose loads up to 15A; support for LED, CFL, Incandescent/Halogen, Fluorescent, Motor loads; neutral required

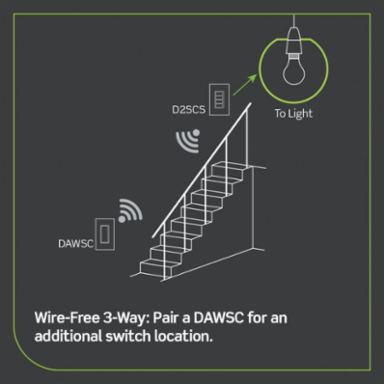

- Supports 3-way/multi-location with the wire-free DAWSC Anywhere Companion and Wired DD0SR Companion

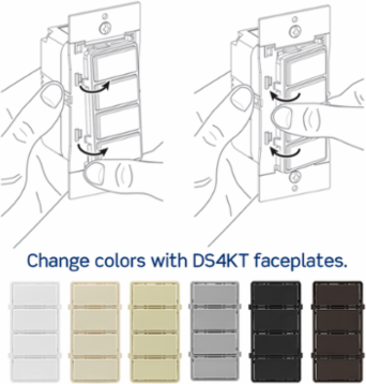

- Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DS4KT
- Use the My Leviton app to create room scenes and whole home automation activities
- Buttons feature feedback lights that illuminate upon button press, then vanish
- Engraved buttons available in all 6 color options can be designed and ordered at any time through the My Leviton app (Available in U.S. only)
- MULTI-BUTTON CONTROL – Add ON/OFF control of connected light(s) and three custom lighting scenes via My Leviton or Apple HomeKit; supports 2.4GHz Wi-Fi Networks
- QUICK INSTALL – Replace your existing light switch to add smart home control, neutral wire required
- THE MOST CONNECTED – Works with Alexa, Google Assistant, Apple Home, SmartThings, and Matter
- EASY SETUP – No complex programming. Use the app to assign custom room scenes or activities, such as “Movie Time” or “All Off” to the buttons. Order custom engraved buttons via the app to personalize (US Only)
- FLEXIBLE OPTIONS – ON or OFF of multiple Decora Smart Wi-Fi devices, ON/OFF toggle control of an individual Decora Smart Wi-Fi device, Scenes, Activities, Works with Apple Home; use the Apple Home app to set up control of scenes and accessories (requires Apple Home Hub and a compatible iOS device).

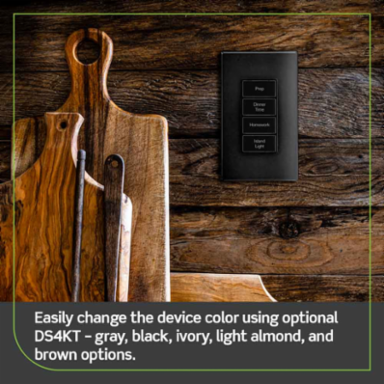

- CONVENIENCE - Change the switch faceplate color to black, gray, brown, light almond, ivory or white using DS4KT
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Material Specifications
- Color
- White
- Strap Material
- Metal
Optional Color Change Kits AvailableYes, DS4KT-1P in White, Ivory, Light Almond, Gray, Black and Brown
Product Features
- Brand
- Decora Smart Wi-Fi
- Grade
- Residential
Device TypeIn-Wall Scene Controller Switch
Hub RequiredNo
Warranty
- Warranty
- 2-Year Limited
Environmental Specifications
- Operating Temperature
- 0°C to 40°C
Electrical Specifications
- Load Rating
- 15A General Use, 5A LED/CFL, 5A Electronic Ballast, 1500W Incand/ Halogen, 15A Magnetic Ballast, ¾ HP Motor
- Termination
- Wire Leads
Neutral RequiredYes
Voltage120 VAC
Standards & Certifications
- Standards and Certifications
- UL, FCC, NOM, CSA, Wi-Fi
