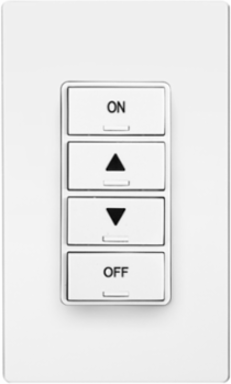

Leviton PLVSW-4LW 4 Button Low Voltage Keypad Controller with Designer Decora Styling
- MPN: PLVSW-4LW
- UPC: 078477706558
- PPN: LEV-PLVSW-4LW
CAD
$110.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Switch, 4 Button. Compatible with 4 Button Color Change Kits (RDGSW-4Ex). Color: White. Includes a matching screwless snap-on wall plate
Features
- Function description: – ON—all lights overridden to FULL ON – Bright - raise light levels with press hold or multiple press, temporary override of daylight harvesting level - Dim—lower light levels with press hold or multiple press, temporary override of daylight harvesting level – OFF—turn off lights
- Designer Decora styling complements any interior for sleek aesthetics
- Keypads utilize industry standard buttons for room lighting control
- Low Voltage Keypads are Decora® devices for controlling non-dimmable and dimmable luminaries connected to Smart Ceiling Mount Sensors (CMS) .
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- Listing
- cUL listed, NOM certified, RoHS compliant, NY LLC48 compliant
Product
- Color
- White
- Product Line
- Smart Sensor
- Warranty
- Limited 5-Year Warranty
Number of Buttons4
Product TypeKeypad
Environmental Specifications
- Operating Temperature
- 32 to 104°F (0 to 40°C)
- Storage Temperature
- 14 to 158°F (-10 to 70°C)
Relative Humidity0-90% non-condensing
Electrical Specifications
- Input Voltage
- 0-28 VDC, 2 mA-10 mA
WiringLow voltage Class 2 wiring, max wiring distance 800 feet
