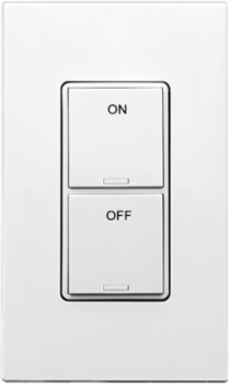

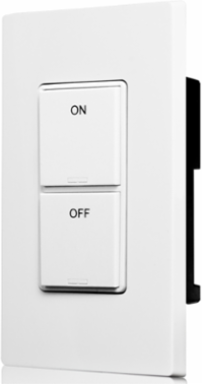

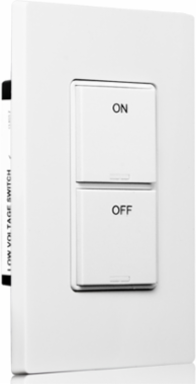

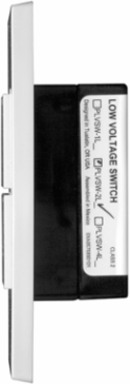

Leviton PLVSW-2LW Low Voltage 2 Button ON/OFF Switch Keypad with White Color and Decora Styling
- MPN: PLVSW-2LW
- UPC: 078477706541
- PPN: LEV-PLVSW-2LW
CAD
$106.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Low Voltage Switch, 2 Button. Compatible with 2 Button Color Change Kits (RDGSW-2Ex). Color: White. Includes a matching screwless snap-on wall plate
Features
- Function description: – ON—all lights overridden to FULL ON – Bright - raise light levels with press hold or multiple press, temporary override of daylight harvesting level - Dim—lower light levels with press hold or multiple press, temporary override of daylight harvesting level – OFF—turn off lights
- Designer Decora styling complements any interior for sleek aesthetics
- Keypads utilize industry standard buttons for room lighting control
- Low Voltage Keypads are Decora® devices for controlling non-dimmable and dimmable luminaries connected to Smart Ceiling Mount Sensors (CMS) .
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| Listing | cUL listed, NOM certified, RoHS compliant, NY LLC48 compliant |
|---|
Product
| Color | White |
|---|---|
| Product Line | Smart Sensor |
| Warranty | Limited 5-Year Warranty |
| Number of Buttons | 2 |
|---|---|
| Product Type | Keypad |
Environmental Specifications
| Operating Temperature | 32 to 104°F (0 to 40°C) |
|---|---|
| Storage Temperature | 14 to 158°F (-10 to 70°C) |
| Relative Humidity | 0-90% non-condensing |
|---|
Electrical Specifications
| Input Voltage | 0-28 VDC, 2 mA-10 mA |
|---|
| Wiring | Low voltage Class 2 wiring, max wiring distance 800 feet |
|---|
