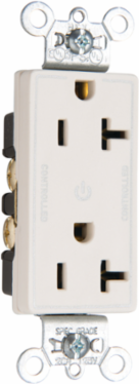

Pass & Seymour 26352CDBL 20A 125V Dual-Controlled Blue Duplex Receptacle, 2.635 Inch Height, 1.322 Inch Width
Pass & Seymour 26352CDBL 20A 125V Dual-Controlled Blue Duplex Receptacle, 2.635 Inch Height, 1.322 Inch Width
- MPN: 26352CDBL
- UPC: 785007038026
- PPN: P-S-26352CDBL
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$12.52/ EA
Description
This durable, dependable Plug Load receptacle is designed to help you meet ASHRAE energy standards. The controlled marking printed on the tough nylon face is both NEMA-approved and compliant with the National Electrical Code.
Features
- NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.
- Can be used to control loads using the Wattstopper DLM system and other building control systems.
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
Specifications
Specifications
- Depth
- 0.78 in
- Color
- Blue
- Width
- 1.322 in
- Amperage
- 20.0 A
- Standard
- FEDSPEC
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Features
- Dual-Controlled
- Outlet Type
- Straight Blade
- Application Sector
- Commercial
- Outlet Type
- Energy Saving On/Off
- Wire Connection Type
- Screw Terminals
- Wire Connection Type
- Internal Pressure Plates
Height2.635 in
Product LinePass & Seymour
Country of OriginMexico
Voltage125.0 V
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Number of PolesDouble Pole
NEMA Configuration Code5-20R
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
