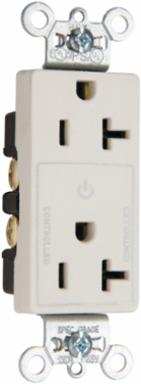

Pass & Seymour 26352CHLA 20A 125V Half-Controlled Duplex Receptacle, Light Almond, 2.635 Inch Height, 1.322 Inch Width, 0.78 Inch Depth
- MPN: 26352CHLA
- UPC: 785007032895
- PPN: P-S-26352CHLA
CAD
$13.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 125V Half-Controlled Duplex Receptacle, Light Almond, 2.635 Inch Height, 1.322 Inch Width, 0.78 Inch Depth
Features
- NEMA approved controlled receptacle marking pad printed on the face of receptacle for superior abrasion resistance.
- Can be used to control loads using the Wattstopper DLM system and other building control systems.
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body.
- One-piece, brass, triple-wipe power contacts for lasting retention.
- Heavy-duty compact design for easier installation and long lasting performance.
- Terminal compartments isolated from each other for positive conductor containment.
- Side and internal screw-pressure-plate back wire accepts #14 - #10 AWG solid or stranded wire.
- All devices fit standard #26 opening wall plate.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 0.78 in
- Amperage
- 20.0 A
- Width
- 1.322 in
- Standard
- FEDSPEC
- Number of Wires
- 4.0
- Wire Size
- 14 - 10 AWG
- Features
- Decorator Style
- Number of Receptacles
- 2.0
- Number of Poles
- Double Pole
- NEMA Configuration Code
- 5-20R
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Color
- Light Almond
Height2.635 in
Voltage125.0 V
Country of OriginMexico
FeaturesPlugload
Indoor/OutdoorIndoor
Wall Plate IncludedNo
FeaturesHalf-Controlled
Outlet TypeStraight Blade
Application SectorCommercial
Outlet TypeEnergy Saving On/Off
Wire Connection TypeScrew Terminals
Wire Connection TypeInternal Pressure Plates
Product LinePass & Seymour
