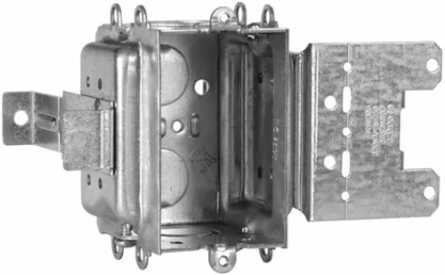

Hubbell H3104MSBBAR Steel Stud Device Box, 1-Gang, 2-1/2 Inch Deep, CSA Certified
- MPN: H3104MSBBAR
- UPC: 805035055823
- PPN: HBL-H3104MSBBAR
CAD
$11.04
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Steel Stud Device Box, 1-Gang, 2-1/2 Inch Deep, CSA Certified
Features
- Equipped with a pre-mounted MSB bracket, this device box is engineered to snap or screw directly onto standard 2-3/8 in or 3-5/8 in steel studs. Featuring a built-in 7/16 in (0.4375 in) setback, it guarantees a perfectly flush fit against standard 1/2-inch drywall installations, saving commercial installers significant alignment and framing layout time.
- Built with fully removable side plates, this welded steel device box features a gangable design that allows field electricians to interlock multiple boxes together instantly. This modular flexibility eliminates the need to carry separate multi-gang inventory, allowing you to easily build custom 2-gang, 3-gang, or larger enclosures right on the job site.
- Outfitted with concentric $1/2\text{ in}$ and $3/4\text{ in}$ knockouts, this box provides smooth routing for rigid or flexible conduit systems while accommodating NMD90 and AC90 (BX) cabling. This versatile entry layout eliminates the need for separate external adapters, allowing contractors to transition seamlessly between differing wiring architectures across commercial or residential spaces.
- Boasting a deep 2-1/2 in structural profile and a 16.0 cubic-inch internal capacity, this box provides ample volume for modern toggles, smart switches, and deep GFCI receptacles. The extra space prevents dangerous conductor crowding and insulation pinching, ensuring full compliance with Canadian Electrical Code (CEC) standards for 14/2 to 12/3 conductor loads.
- aturing an integrated, raised ground screw hole directly in the back panel, this electrical box establishes an instant, low-resistance path to ground. This raised positioning isolates the grounding pigtail from live terminal screws and conductors, drastically speeding up rough-in times and guaranteeing clean, code-compliant installations that pass safety audits without bottlenecks.
Documentation & Downloads
Specifications
Additional
- Depth
- 2.5 in
- Weight
- 0.65 lb
- Bracket Type
- MSB, for Steel Stud
- Raised Ground Screw
- Yes
- Knockouts - Bottom
- 2 x 1/2 in
- Color
- Gray
- Drawn or Welded
- Welded
Number of Gangs1-Gang
MaterialSteel
Bracket Setback0.4375 in
Knockouts - End2 x 1/2-3/4 in Combination
CertificationCSA Certified
Wiring SystemConduit
TypeSwitch Box
