Weidmuller 1604250000 DFFC 0.22-0.35 SN E

Name: Weidmuller 1604250000 DFFC 0.22-0.35 SN E
Brand: Weidmuller
SKU: WDM-1604250000
Price: 0.4 CAD
Availability: BackOrder

CAD

$0.40

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

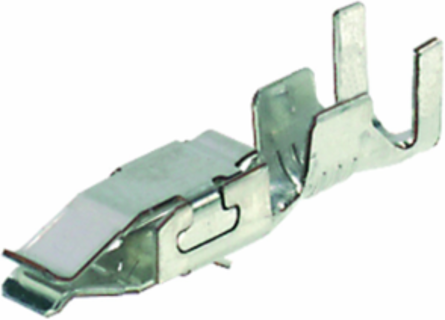

PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 0.35 mm²

Approvals	EAC

ROHS	Conform

Net weight	0.3 g

tested acc. to standard	IEC 60664-1, IEC 61984

Short-time withstand current resistance	3 x 1s with 120 A

Contact material	Copper alloy
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Contact surface	tinned
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Packaging	Box
VPE width	70 mm

VPE length	40 mm
VPE height	90 mm

IPC conformity	Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
