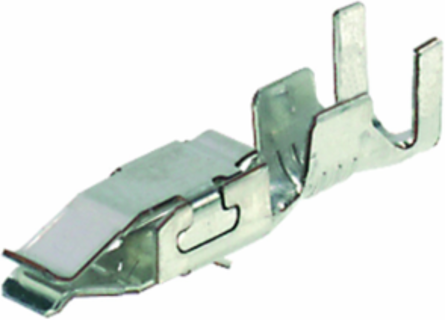

Weidmuller 1705320000 DFFC .5-1.0 ZRV1.5
- MPN: 1705320000
- PPN: WDM-1705320000
CAD
$1.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Accessories, Crimp contact, Rated cross-section: 1.5 mm², Crimp contact, Direct mounting
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 0.22 g |
|---|
Additional Technical Data
| Installation advice | Direct mounting |
|---|
Material Data
| Material | Plastic |
|---|
| Colour | silver |
|---|
Classifications
| ETIM 6.0 | EC000796 |
|---|---|
| eClass 9.0 | 27-44-02-04 |
| eClass 10.0 | 27-44-02-04 |
| ETIM 7.0 | EC000796 |
|---|---|
| eClass 9.1 | 27-44-02-04 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | for holding 0.5 ... 1.0 mm² |
|---|
Rating Data
| Rated cross-section | 1.5 mm² |
|---|---|
| Power loss in accordance with IEC 60947-7-x | 0.56 W |
| Volume resistance according to IEC 60947-7-x | 1.83 mΩ |
|---|
Conductors For Clamping (Rated Connection)
| Type of connection | Crimp contact |
|---|
