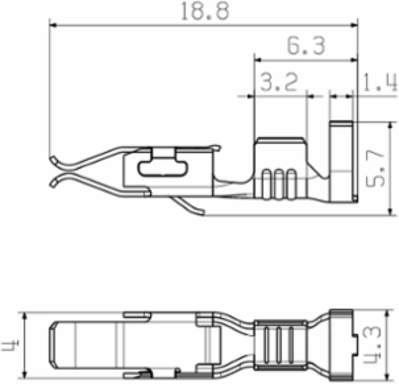

Weidmuller 1480100000 DFFC 1.5-2.5 SN 2500
- MPN: 1480100000
- PPN: WDM-1480100000
CAD
$0.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

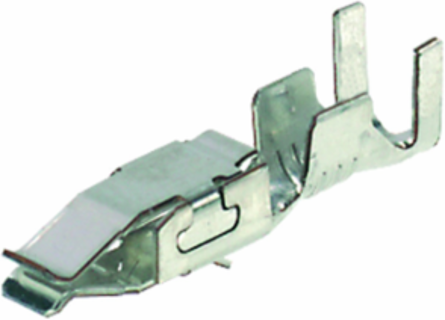

PCB plug-in connector, Crimp contact, Contact, tinned, Max. clamping range : 2.5 mm²
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 0.73 g
Rated Data Acc. To Iec
- tested acc. to standard
- IEC 60664-1, IEC 61984
Short-time withstand current resistance3 x 1s with 120 A
Material Data
- Contact material
- Copper alloy
- Storage temperature, min.
- -25 °C
- Max. relative humidity during storage
- 80 %
- Operating temperature, max.
- 100 °C
- Temperature range, installation, max.
- 100 °C
Contact surfacetinned
Storage temperature, max.55 °C
Operating temperature, min.-50 °C
Temperature range, installation, min.-25 °C
Classifications
- ETIM 6.0
- EC000796
- eClass 9.0
- 27-44-02-04
- eClass 10.0
- 27-44-02-04
ETIM 7.0EC000796
eClass 9.127-44-02-04
UNSPSC30-21-18-01
Packing
- Packaging
- Box
- VPE width
- 600 mm
VPE length35 mm
VPE height600 mm
Notes
- IPC conformity
- Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Conductors Suitable For Connection
- Clamping range, min.
- 1.5 mm²
- Wire connection cross section AWG, min.
- AWG 16
- Max. clamping range
- 2.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
